Size 20mm NEMA 8 Hollow Shaft Stepper Motor Closed-loop 0.04Nm 0.6A 20x38mm with 1000PPR Encoder

$70.00

In Stock:

5

Model: 20AI38EC-KC1

Weight: 0.18KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 8 Hollow Shaft Stepper Motor with Encoder: This small size 20mm NEMA 8 hollow shaft closed-loop stepper motor with 1000PPR incremental optical encoder has a body length 38mm with 0.6A rated current & holding torque 0.018Nm. A hollow shaft with outer diameter Φ5mm & inner diameter Φ2.5mm is available and also a double shaft with the front shaft length 10mm and rear shaft length 7mm is designed.

NEMA 8 Hollow Shaft Stepper Motor with Encoder Specification

  • Part Number: 20AI38EC-KC1
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.04Nm
  • Rated Current/phase: 0.6A
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 53mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000PPR
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ2.5mm
  • Outer Diameter: Φ5mm
  • Front Shaft Length: 10mm
  • Rear Shaft Length: 7mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 80g

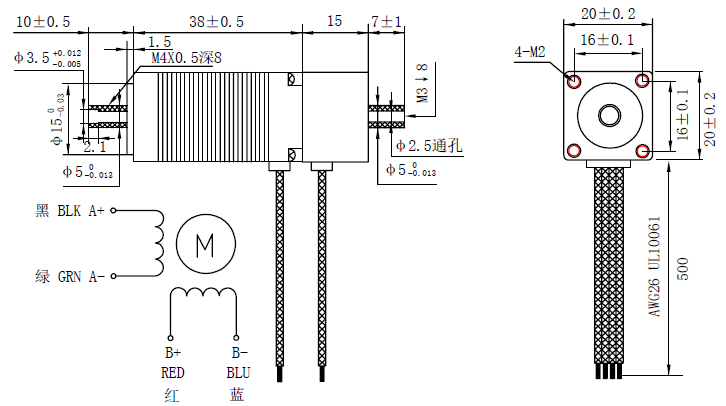

Overall Size

NEMA 8 Hollow Shaft Stepper Motor with Encoder
