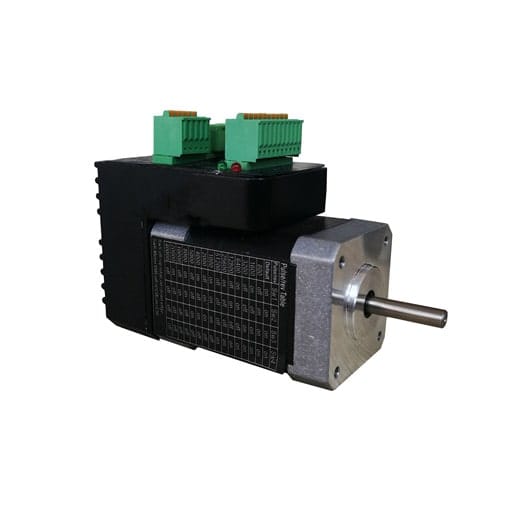

This iCL42-03 NEMA 17 integrated closed-loop drive motor has a holding torque 0.3Nm/42.6oz-in and a overall body length 64.3mm, integrated with a 14-bit incremental magnetic encoder and 24-48VDC drive, which can solve the loss of step problems in open loop control system. It also has a very compact size and makes all components integrated together (encoder connection, drive board and motor wiring) to reduce interference, cut cable and labor costs, and save the mounting space.
The iCL42-03 NEMA 17 integrated closed-loop drive motor 0-3Nm is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.

NEMA 17 integrated closed-loop drive motor 0-3Nm Specifications

• Manufacturer Part Number: iCL42-03
  Holding Torque: 0.3Nm(42.6oz.in)
  Power Voltage: 24-36VDC
  Rated Current: 0.3-1.5A
  Logical Current: 7-16mA
  Logical Voltage: 5V
  Max. Input Frequency: 200KHz

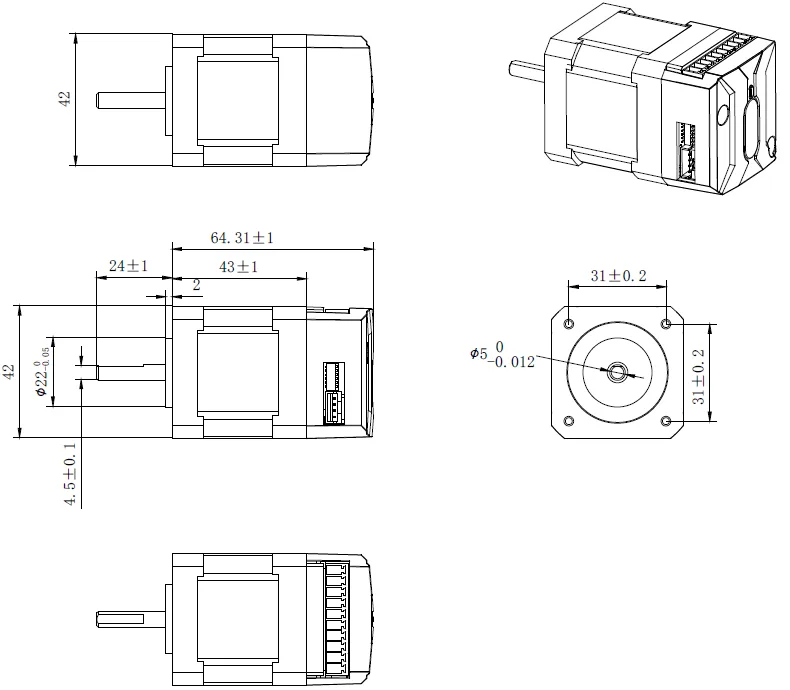

  Frame Size: 42x42mm
  Body Length: 64mm
  Shaft Diameter: 5mm
  Shaft Length: 24mm
  Weight: 0.5kg
  Environment: Avoid dust, oil fog and corrosive gases
  Humidity: 40%RH-90%RH
  Operating Temperature: 0°C-40°C
  Vibration: 10-50Hz/0.15mm
  Storage Temperature: 0°C-65°C
