Size 42mm NEMA 17 Hollow Shaft Stepper Motor Through Hole Φ6.2mm 0.45Nm 1.7A 42x48mm

$25.00

In Stock:

5

Model: 42AI48-1704K

Weight: 0.4KG

Certificated: CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 17 Through Hole Stepper Motor: This compact size 42mm NEMA 17 Through Hole Stepper Motor has a body length 48mm with 1.7A rated current & holding torque 0.45Nm. A hollow shaft with outer diameter Φ10mm & inner diameter Φ6.2mm is available and also a dual shaft with front shaft length 24mm & rear shaft length 10mm is designed.

NEMA 17 Through Hole Stepper Motor Specification

  • Part Number: 42AI48-1704KK
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.45Nm
  • Rated Current/phase: 1.7A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ5.2mm
  • Outer Diameter: Φ10mm
  • Front Shaft Length: 24mm
  • Rear Shaft Length: 10mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 350g

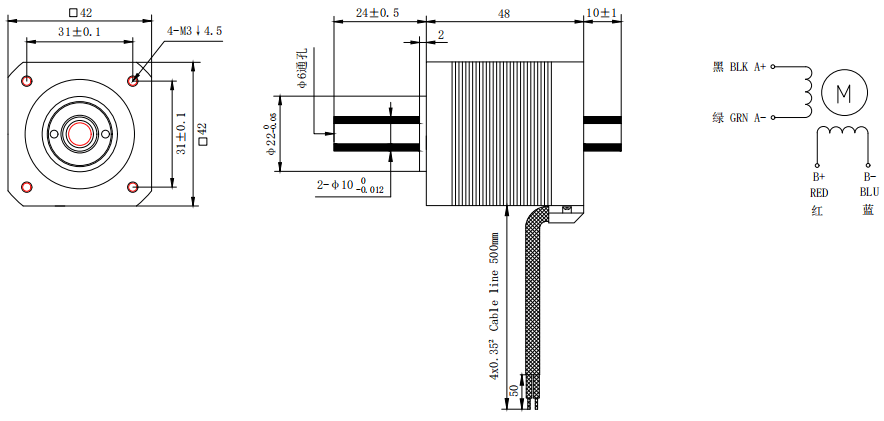

Overall Size

NEMA 17 Through Hole Stepper Motor
