Size 28mm NEMA 11 Through Shaft Stepper Motor 0.067Nm 0.8A 28x34mm

$25.00

In Stock:

4

Model: 28AI34-0804K5

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

4 in stock (can be backordered)

NEMA 11 Through Shaft Stepper Motor: This small size 28mm NEMA 11 through shaft stepper motor has a body length 34mm with 0.8A rated current & holding torque 0.067Nm. A hollow shaft with front outer diameter Φ5mm & rear outer diameter Φ8mm is available and also a double shaft with the front shaft length 9mm and rear shaft length 7mm is designed. The small digital stepper drive M322C can be used for controlling this motor.

NEMA 11 Through Shaft Stepper Motor Specification

  • Part Number: 28AI34-0804K5
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.067Nm
  • Rated Current/phase: 0.8A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 28x28mm
  • Body Length: 34mm
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ4.2mm
  • Front Outer Diameter: Φ8mm
  • Front Shaft Length: 9mm
  • Rear Shaft Length: 7mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 150g

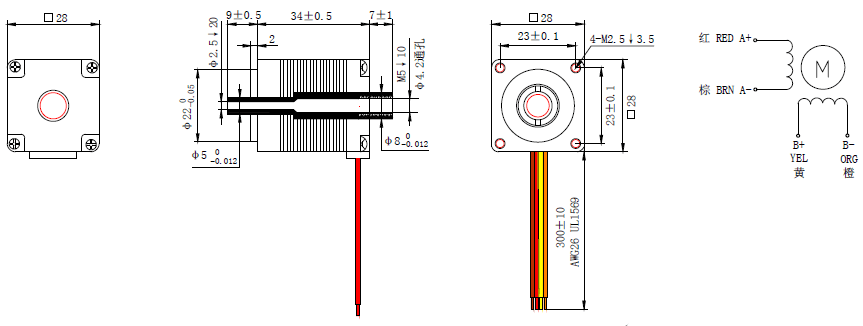

Overall Size

NEMA 11 Through Shaft Stepper Motor
