Size 42mm NEMA 17 High Torque Hollow Shaft Stepper Motor 0.7Nm 1.7A 42x60mm

$35.00

In Stock:

10

Model: 42AI60-1704K

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

High Torque NEMA 17 Hollow Shaft Motor: This compact size 42mm NEMA 17 high torque hollow shaft stepper motor has a body length 60mm with 1.7A rated current & a strong holding torque 0.7Nm. A hollow shaft with outer diameter Φ10mm & inner diameter Φ4.2mm is available and also a dual shaft with front shaft length 25mm & rear shaft length 15mm is designed.

High Torque NEMA 17 Hollow Shaft Motor Specification

  • Part Number: 42AI60-1704K
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.7Nm
  • Rated Current/phase: 1.7A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Body Length: 60mm
  • Shaft Type: Hollow Shaft
  • Inner Diameter: Φ4.2mm
  • Outer Diameter: Φ10mm
  • Front Shaft Length: 25mm
  • Rear Shaft Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 550g

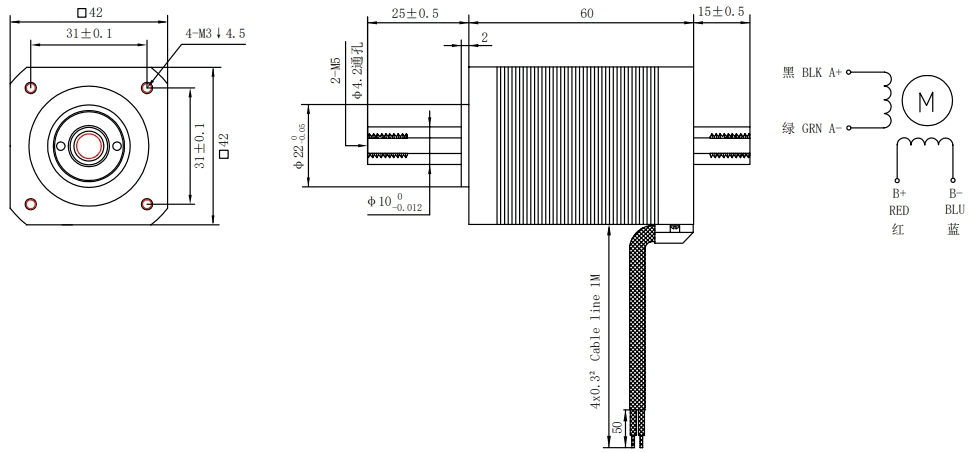

Overall Size

High Torque NEMA 17 Hollow Shaft Motor
