Size 20mm NEMA 8 Hollow Shaft Stepper Motor M5 Thread 0.018Nm 0.6A 20x30mm

Size 20mm NEMA 8 Hollow Shaft Stepper Motor M5 Thread 0.018Nm 0.6A 20x30mm

$20.00

In Stock:

5

Model: 20AI30-0604M5

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 8 Hollow Shaft M5 Thread: This small size 20mm NEMA 8 hollow shaft stepper motor has a body length 30mm with 0.6A rated current & holding torque 0.018Nm. A hollow shaft with outer diameter Φ5mm & inner diameter Φ2.5mm is available and also a double shaft with the front shaft length 12mm and rear shaft length 8mm with M5 thread is designed.

NEMA 8 Hollow Shaft M5 Thread Specification

  • Part Number: 20AI30-0604M5
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.018Nm
    Rated Current/phase: 0.6A
    Driving Voltage: 12-24VDC
    Frame Size: 20x20mm
    Body Length: 30mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ2.5mm
    Outer Diameter: Φ5mm
    Front Shaft Length: 12mm
    Rear Shaft Length: 8mm with M5 thread
    Number of Leads: 4
    Lead Length: 400mm
    Weight: 60g

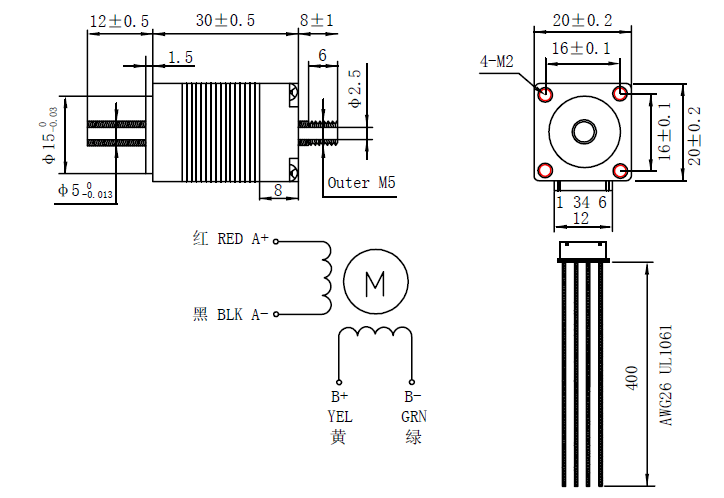

Overall Size

NEMA 8 Hollow Shaft M5 Thread
