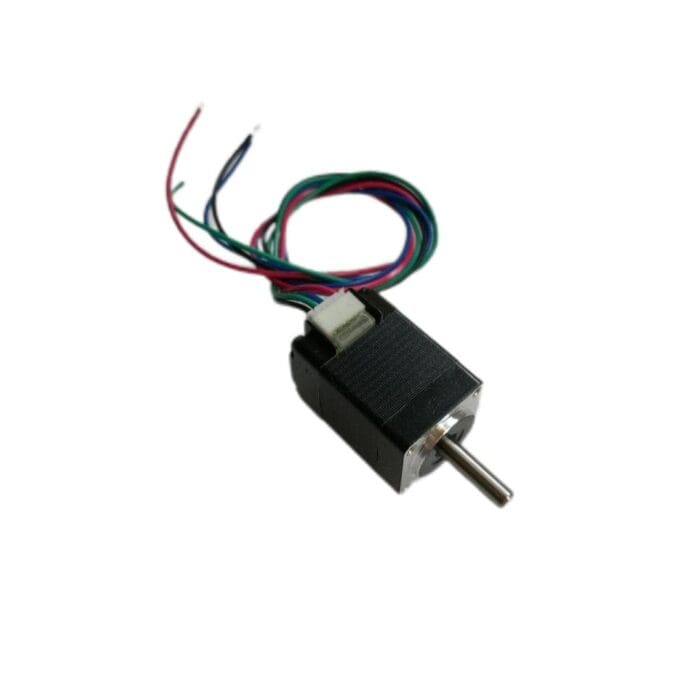

Size 20mm NEMA 8 Stepper Motor Bipolar 1.8deg 0.02Nm 0.6A 20x30mm 4 Wires

$10.50

In Stock:

100

Model: 20AI30-0604S

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

100 in stock (can be backordered)

NEMA 8 Stepper Motor 30mm: This small size 20mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 30mm. Each phase draws current 0.6A, allowing for a holding torque of 0.02Nm. Please note this motor has a 16.0mm bolt spacing & 15mm pilot circle. More details, please refer to the data sheet of 20AI30-0604S.

NEMA 8 Stepper Motor 30mm Specification

  • Part Number: 20AI30-0604S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.018Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 6.5ohms
  • Inductance: 2.0mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 30mm
  • Shaft Type: Round
  • Shaft Diameter: Φ4mm
  • Shaft Length: 15mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 65g
  • Recommend drive: FLKH2D0228DC

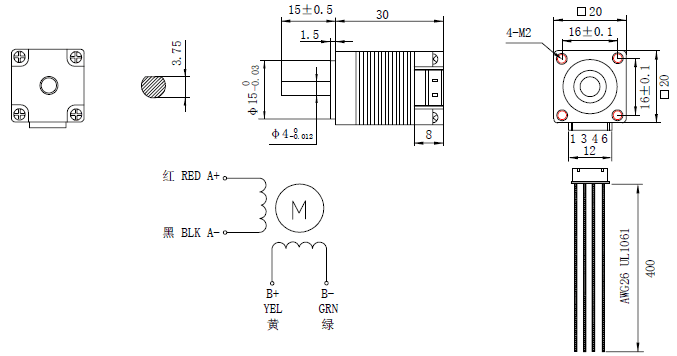

Overall Size

NEMA 8 Stepper Motor 30mm
