Size 14mm NEMA 6 Hollow Shaft Stepper Motor Dual Shaft 0.005Nm 0.3A 14x30mm

Size 14mm NEMA 6 Hollow Shaft Stepper Motor Dual Shaft 0.005Nm 0.3A 14x30mm

$85.00

In Stock:

5

Model: 14AI30-0304K

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 6 Hollow Shaft Stepper Motor

NEMA 6 Hollow Shaft Stepper Motor: This micro size 14mm NEMA 6 stepper motor has a body length 30mm with 0.3A rated current & holding torque 0.005Nm. A hollow shaft with outer diameter Φ4mm & inner diameter Φ2.2mm is available and also a double shaft with the front shaft length 12.5mm and rear shaft length 5mm is designed.

NEMA 6 Hollow Shaft Stepper Motor Specification

Part Number: 14HS30-0304K
Step Angle: 1.8deg
Bipolar/Unipolar: Bipolar
Holding Torque: 0.005Nm
Rated Current/phase: 0.3A
Driving Voltage: 5-24VDC
Frame Size: 14x14mm
Body Length: 30mm
Shaft Type: Hollow Shaft
Inner Diameter: Φ2.2mm
Outer Diameter: Φ4mm
Front Shaft Length: 12.5mm
Rear Shaft Length: 5mm
Number of Leads: 4
Lead Length: 300mm
Weight: 30g

NEMA 6 Stepper Motor Bipolar 1.8deg 0.005Nm 0.3A 14x30mm

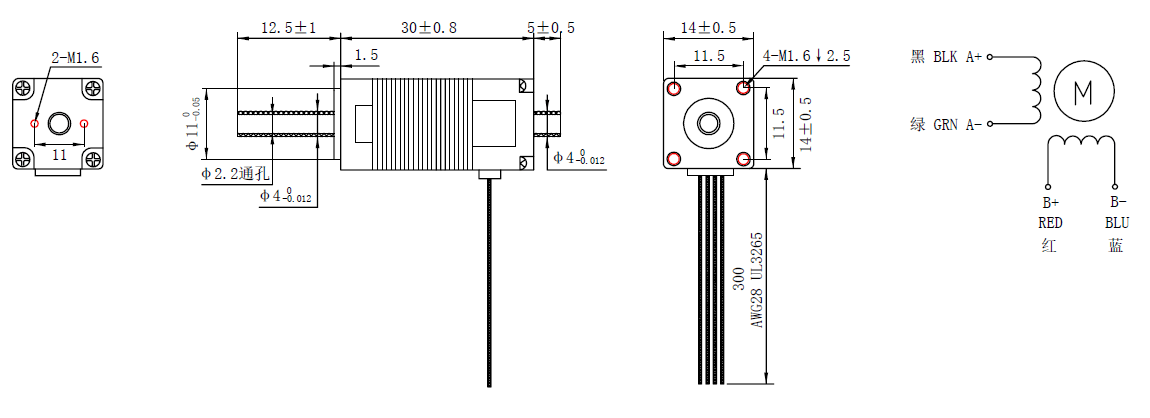

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
