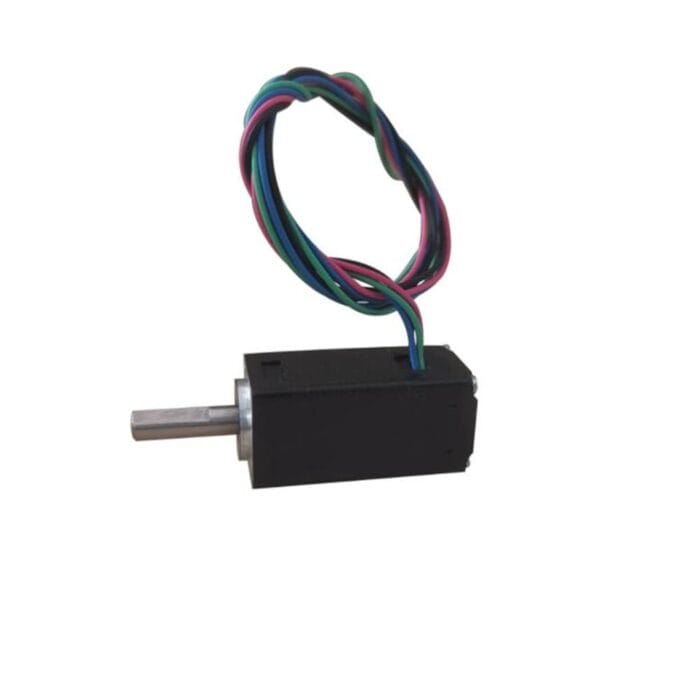

Size 14mm NEMA 6 Stepper Motor Bipolar 1.8deg 0.005Nm 0.3A 14x30mm 4 Wires

$55.00

In Stock:

100

Model: 14AI30-0304S

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

100 in stock (can be backordered)

NEMA 6 Stepper Motor: This size 14mm NEMA 6 stepper engine is the samllest stepper motor in market, which only has a frame size 14x14x30mm and a compact holding torque 0.005Nm. This micro stepper motor is widely used for laboratory test, optical instruments, semiconductor fabrication, etc.

NEMA 6 Stepper Motor Specification

  • Part Number: 14AI30-0304S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.005Nm/1.4oz.in
  • Rated Current/phase: 0.3A
  • Phase Resistance: 22ohms
  • Inductance: 4.2mH
  • Driving Voltage: 5-24VDC
  • Frame Size: 14x14mm
  • Body Length: 30mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ4mm
  • Shaft Length: 15mm
  • D-cut Length: 10mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 30g
  • Recommend drive: FLKH2D0228DC

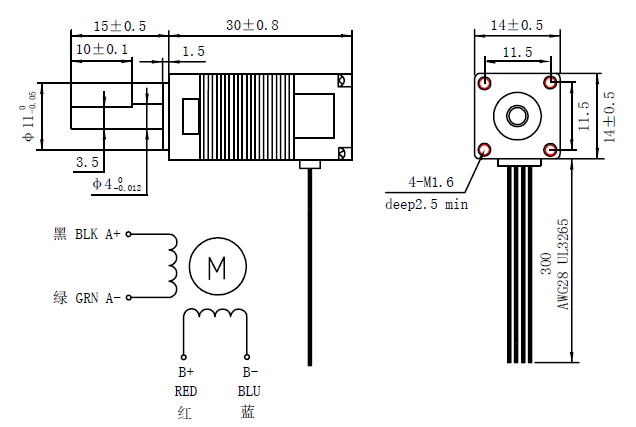

Overall Size

NEMA 6 Stepper Motor

If needing full data sheet or torque curve of 14AI30-0304S, please feel free to contact us.
