Size 110mm NEMA 42 3 Phase Stepper Motor 1.2deg 24Nm with 24V Electromagnetic Brake

Size 110mm NEMA 42 3 Phase Stepper Motor 1.2deg 24Nm with 24V Electromagnetic Brake

$250.00

In Stock:

5

Model: 110AI302-7503YS

Weight: 12KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 42 Stepper Motor 24Nm with Brake: This big NEMA 42 1.2deg stepper motor has a frame size 110-302mm, holding torque 24nm with rated current 7.5a, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 42 Stepper Motor 24Nm with Brake Specification

  • Part Number: 110AI302-7503YS
    Phase Number: 2
    Step Angle: 1.2deg
    Holding Torque: 24.0Nm
    Rated Current/phase: 7.5A
    Driving Voltage: 110-220VAC
    Frame Size: 110x110mm
    Body Length: 302mm
    Shaft Diameter: Φ19mm
    Shaft Length: 40mm
    Keyway Length: 31mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

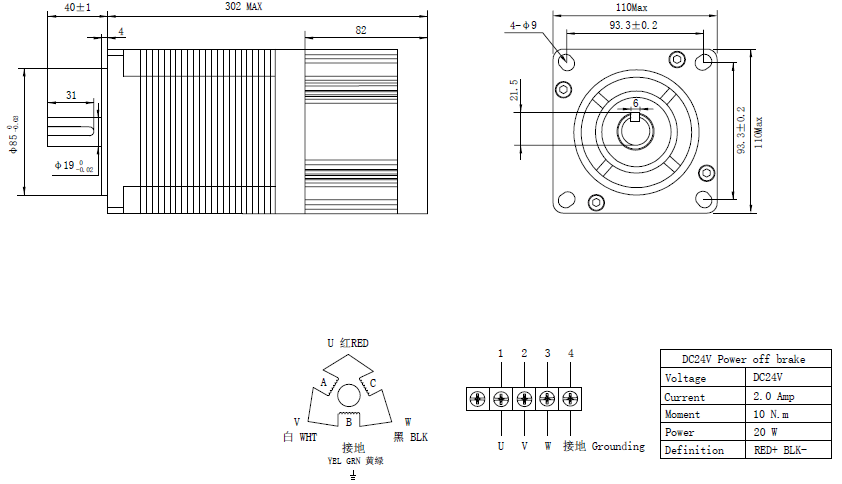

Overall Size

NEMA 42 Stepper Motor 24Nm with Brake
