Size 110mm NEMA 42 3 Phase Stepper Motor 1.2deg 16Nm with 24V Electromagnetic Brake

Size 110mm NEMA 42 3 Phase Stepper Motor 1.2deg 16Nm with 24V Electromagnetic Brake

$200.00

In Stock:

5

Model: 110AI237-6203YS

Weight: 9.5KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

16Nm Stepper Motor with Brake: This big NEMA 42 1.2deg stepper motor has a frame size 110-237mm, holding torque 16nm with rated current 6.2A, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

16Nm Stepper Motor with Brake

  • Part Number: 110AI237-6203YS
  • Phase Number: 3
  • Step Angle: 1.2deg
  • Holding Torque: 16.0Nm
  • Rated Current/phase: 6.2A
  • Driving Voltage: 110-220VAC
  • Insulation Class: B 130°C
  • Frame Size: 110x110mm
  • Body Length: 237mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 40mm
  • Keyway Length: 31mm
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC

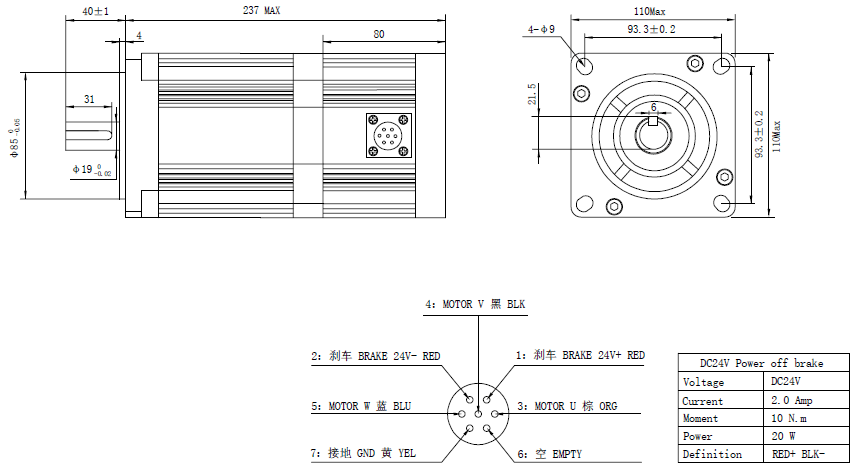

Overall Size

16Nm Stepper Motor with Brake
