Size 28mm NEMA 11 Stepper Motor 0.07Nm 1.0A with 24V Electromagnetic Brake

$48.00

In Stock:

10

Model: 28AI33-1004S-YS

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 11 Stepper Motor Brake: This small NEMA 11 stepper motor has a frame size 28-33mm, holding torque 0.07Nm with rated current 1.0A, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 11 Stepper Motor Brake Specification

  • Part Number: 28AI33-1004S-YS
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.07Nm
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 28x28mm
  • Body Length: 55.1mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC

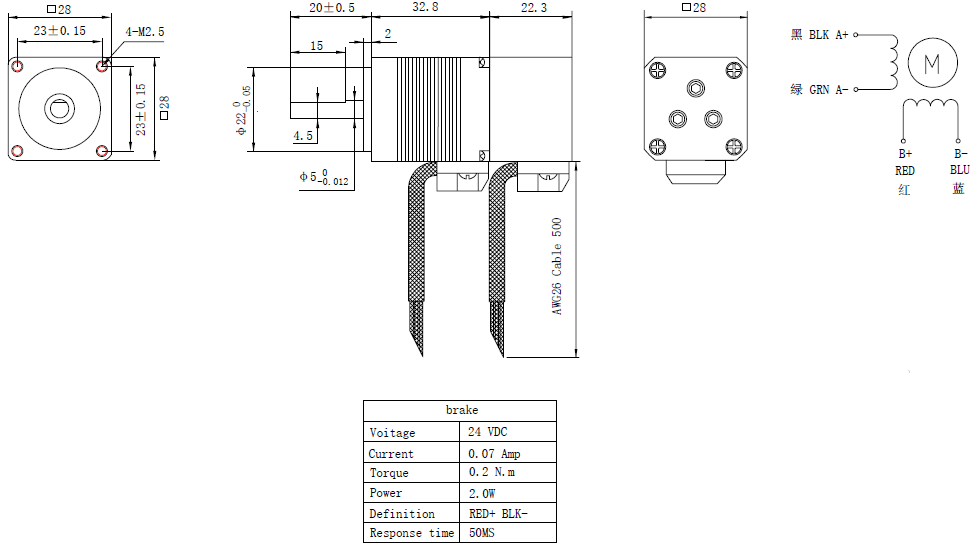

Overall Size

NEMA 11 Stepper Motor Brake
