NEMA 23 Closed Loop Geared Stepper Motor with 1000PPR Encoder & Electromagnetic Brake

Price range: $125.00 through $140.00

In Stock:

10

Model: 57AI80-4604E-KGL-YS

Weight: 3.5KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

NEMA 23 Closed loop Geared Motor with Brake: This big geared closed-loop stepper motor has a frame size 57x57mm(NEMA 23) with rated current 4.6A, integrated with a KGL series high-precision reduction gearbox & a 1000PPR resolution incremental optical encoder & 24VDC electromagnetic brake. It is an ideal choice for the applications that require high torque/low speed but high precision motion control and positioning feedback and vertical working situation.

NEMA 23 Closed loop Geared Motor with Brake Specification

  • Part Number: 57AI80-4604E-KGL-YS
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 2.2Nm w/o gearbox
  • Rated Current/phase: 4.6A
  • Insulation Class: B 130°C
  • Frame Size: 57x57mm
  • Motor Length: 80mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000PPR
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC
  • Gearbox Type: Planeary
  • Gear Ratio: 3-100:1
  • Efficiency: 96%-94%
  • Backlash at No-load: 15arcmin-20arcmin
  • Gearbox Length: 73.5mm-89.5mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 33mm
  • Keyway Length: 25mm

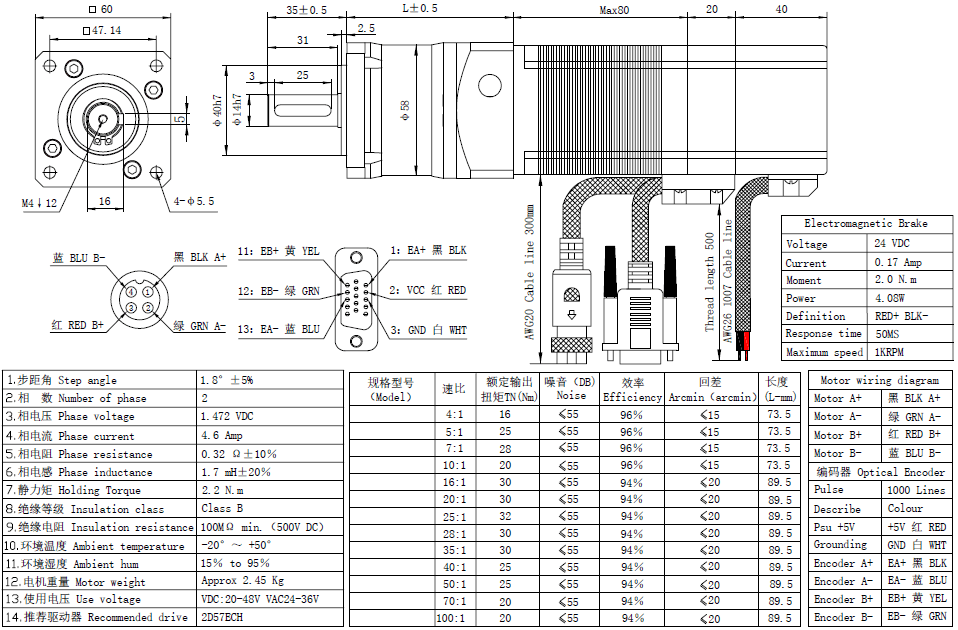

Overall Size

NEMA 23 Closed loop Geared Motor with Brake
