NEMA 8 Stepper Motor Bipolar 0.04Nm with 24V Electromagnetic Brake

$85.00

In Stock:

10

Model: 20AI38-0604S-YS

Weight: 0.15KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 8 Brake Stepper Motor: This small NEMA 8 stepper motor has a frame size 20x20mm, holding torque 0.04Nm with rated current 0.6A, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 8 Brake Stepper Motor Specification

  • Part Number: 20AI38-0604S-YS
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.04Nm
  • Rated Current/phase: 0.6A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 20x20mm
  • Body Length: 52mm
  • Shaft Diameter: Φ4mm
  • Shaft Length: 12mm
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC

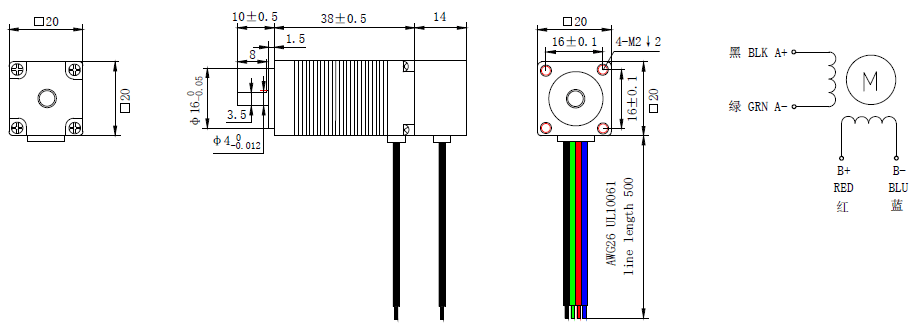

Overall Size

NEMA 8 Brake Stepper Motor
