Size 110mm NEMA 42 Closed Loop Stepper Servo Motor 1.2deg 20Nm with 1000PPR Encoder & Drive Contrller Kit

Size 110mm NEMA 42 Closed Loop Stepper Servo Motor 1.2deg 20Nm with 1000PPR Encoder & Drive Contrller Kit

$350.00

In Stock:

5

Model: 110AI222EC-10003

Weight: 25KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 42 Closed Loop Stepper Motor: This 1.2 degree step angle size 110x110mm 3 phase NEMA 42 stepper servo motor, equipped with a 1000PPR incremental optical encoder, has a rated current of 6.8A and a powerful holding torque of 20Nm & high speed upto 3000RPM. This high performance easy servo dc motor has already recommended a suitable closed-loop stepper driver that all parameters are set well.

NEMA 42 Closed Loop Stepper Motor Specification

  • Part Number: 110AI222EC-10003
  • Step Angle: 1.2deg
  • Holding Torque: 20.0Nm
  • Rated Current/phase: 6.8A
  • Driving Voltage: 110-220VAC
  • Insulation Class: B 130°C
  • Frame Size: 110x110mm
  • Body Length: 223mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 40mm
  • Keyway Length: 30.5mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000PPR

This CNC kit included:
1 x 110AI222EC-10003: NEMA 42 Closed Loop Stepper Motor 1.2deg 20Nm with 1000CPR Encoder
1 x 3D110BH: Closed Loop Stepper Driver 0-8.0A 110-250VAC
1 x 3m Extension Motor & Encoder Cable Kit

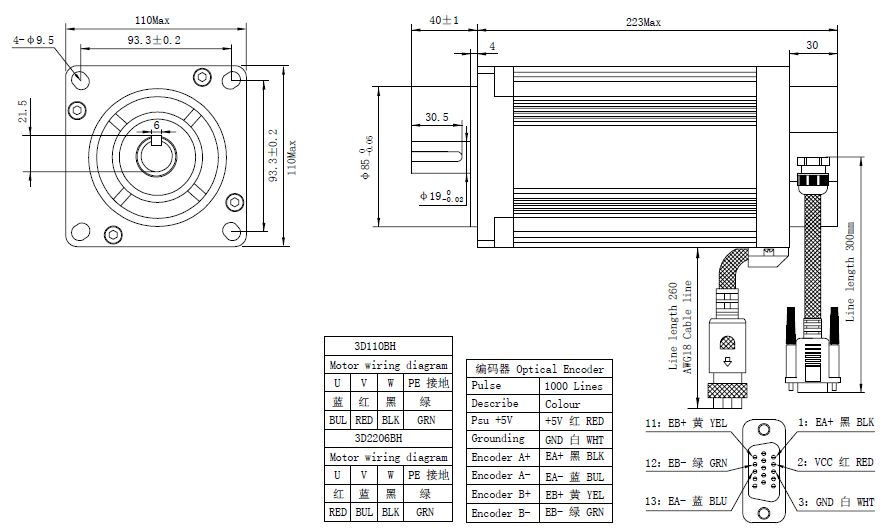

Overall Size

NEMA 42 Closed-loop Stepper Motor
