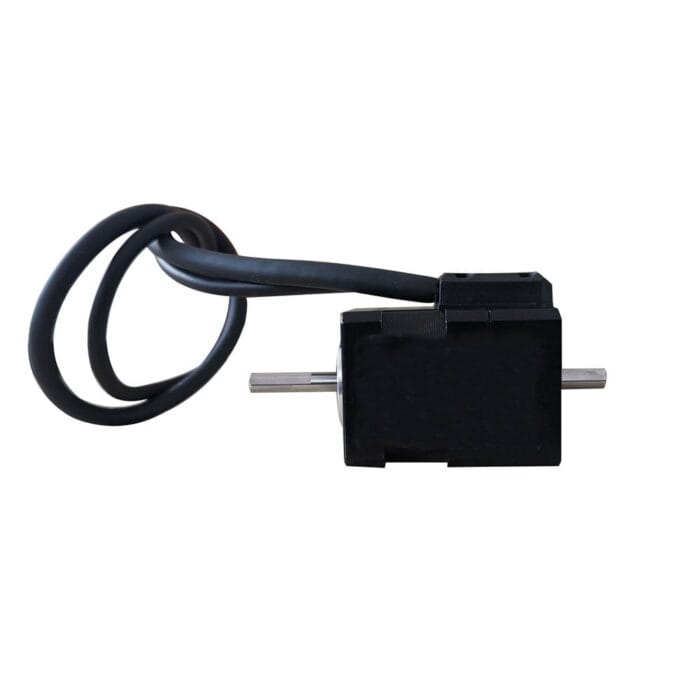

NEMA 14 Closed Loop Stepper Motor Dual Shaft 0.22Nm with 1000CPR Encoder & Rear Shaft

$50.00

In Stock:

5

Model: 35AI34-1954DE

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock

NEMA 14 Dual Shaft Closed Loop Stepper Motor has a frame size 35-34mm , equipped with a 1000cpr incremental optical encoder, has a rated current of 1.95A and a holding torque of 0.22Nm. It offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors. A length of 13mm rear shaft is available for special situation uses.

NEMA 14 Dual Shaft Closed Loop Stepper Motor  Specification

  • Part Number: 35AI34-1954DE
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.22Nm
    Rated Current/phase: 1.95A
    Driving Voltage: 12-24VDC
    Frame Size: 35x35mm
    Body Length: 50mm
    Shaft Diameter: Φ5mm
    Shaft Length: 24mm
    D-cut Length: 15mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR

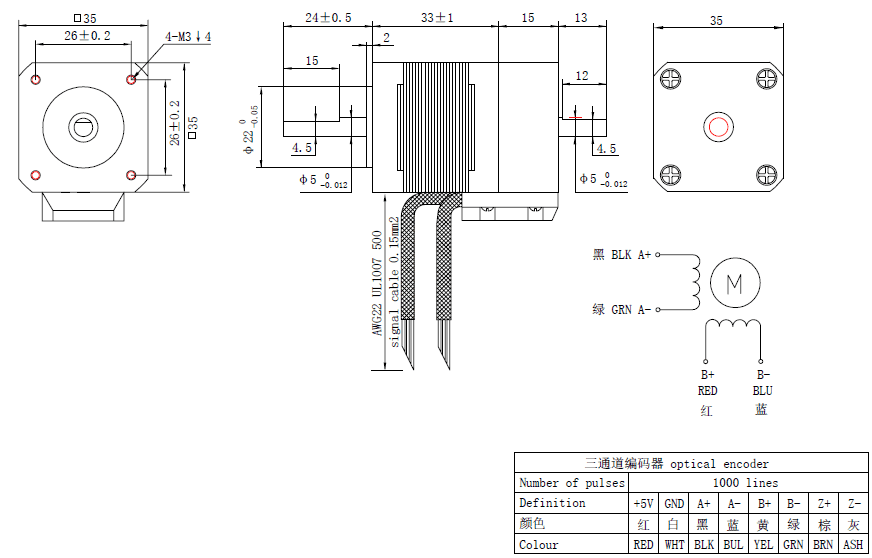

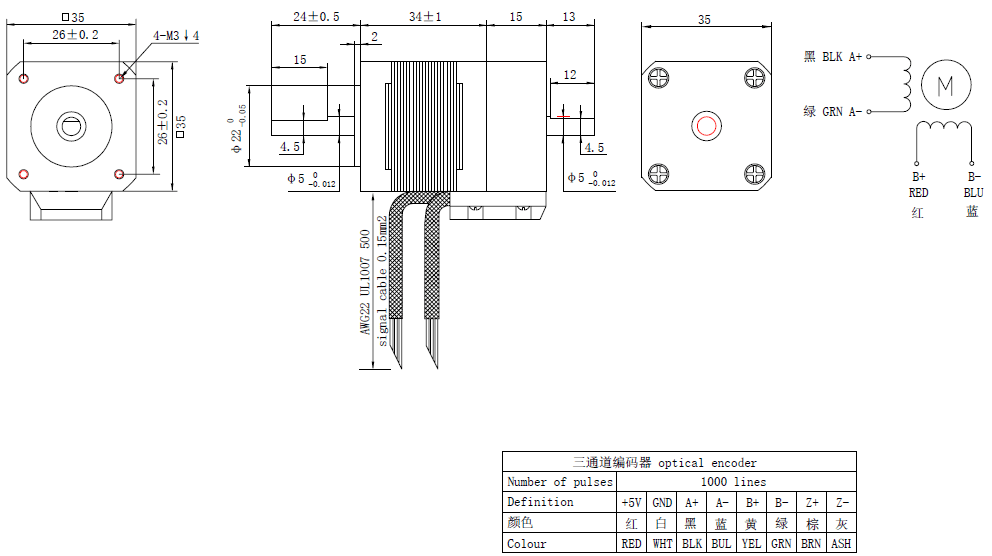

Overall Size

NEMA 14 Dual Shaft Closed Loop Stepper Motor
