Size 130mm NEMA 51 Closed-Loop Stepper Servo Motor 1.2deg 50Nm with 1000PPR Encoder & Drive Contrller Kit

Size 130mm NEMA 51 Closed-Loop Stepper Servo Motor 1.2deg 50Nm with 1000PPR Encoder & Drive Contrller Kit

$450.00

In Stock:

5

Model: 130AI282EC-10003

Weight: 32KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

130mm Stepper servo Motor: This 1.2 degree step angle size 130mm NEMA 51 closed loop stepper motor, equipped with a 1000PPR incremental optical encoder, has a rated current of 8.2A and a big holding torque of 50Nm & high speed upto 3000RPM.This high performance easy servo motor has already recommended a suitable 130mm stepper servo motor closed-loop driver that all parameters are set well.

130mm Stepper Servo Motor Specification

  • Part Number: 130AI282EC-10003
  • Step Angle: 1.2deg
  • Holding Torque: 50.0Nm
  • Rated Current/phase: 8.2A
  • Driving Voltage: 110-220VAC
  • Insulation Class: B 130°C
  • Frame Size: 130x130mm
  • Body Length: 282mm
  • Shaft Diameter: Φ24mm
  • Shaft Length: 52mm
  • Keyway Length: 25mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR
  • Driver Voltage: 110-250VAC
  • Driver Current: 0-8.0A

This CNC kit included:
1 x 130AI282EC-10003: NEMA 51 Closed Loop Stepper Motor 1.2deg 50Nm with 1000CPR Encoder
1 x 3D110BH: Closed Loop Stepper Driver 0-8.0A 110-250VAC
1 x 3m Extension Motor & Encoder Cable Kit

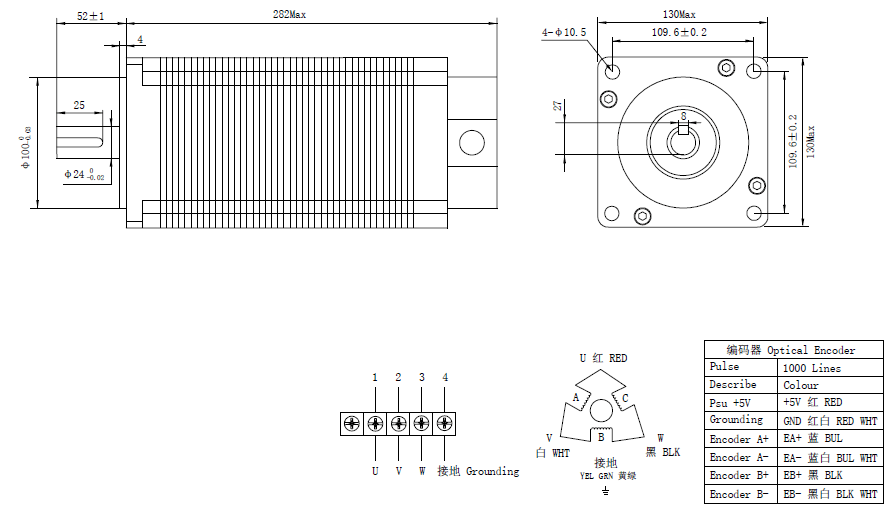

Overall Size

130mm stepper servo motor
