Size 42mm NEMA 17 Closed-loop Stepper Servo Motor 1.5A 0.4Nm with Ultrathin Magnetic Encoder 1000PPR

$29.90

In Stock:

5

Model: 42AI40-1504D-ME1K

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 17 Ultrathin Encoder Stepper Motor has a size 42x42x40mm, equipped with a 1000PPR ULTRATHIN magnetic encoder, has a rated current of 1.5A and a holding torque of 0.4Nm & high speed upto 3000RPM. It offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors.

NEMA 17 Ultrathin Encoder Stepper Motor Specification

  • Part Number: 42AI40-1504D-ME1K
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.4Nm
  • Rated Current/phase: 1.5A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Body Length: 44.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000PPR

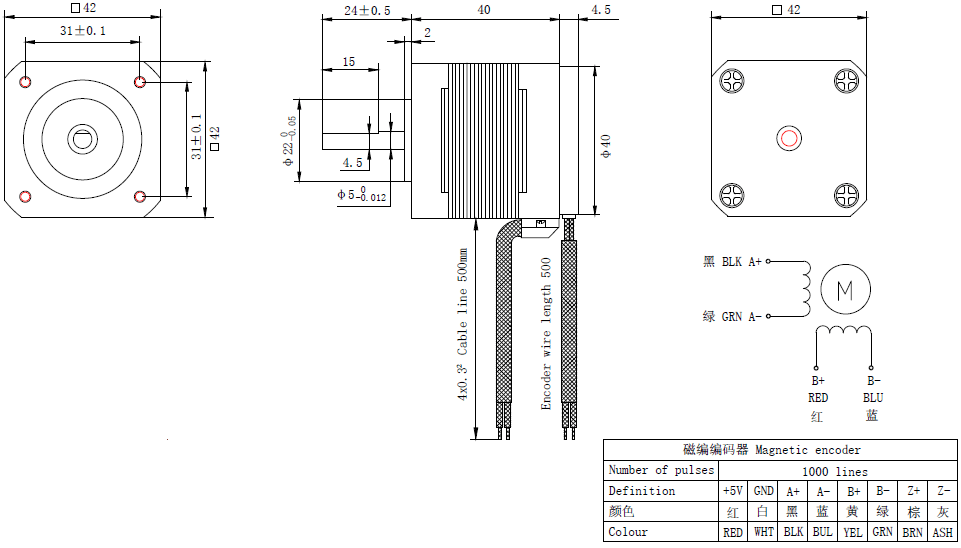

Overall Size

NEMA 17 Ultrathin Encoder Stepper Motor

Reviews

There are no reviews yet.

Be the first to review “Size 42mm NEMA 17 Closed-loop Stepper Servo Motor 1.5A 0.4Nm with Ultrathin Magnetic Encoder 1000PPR”

Your email address will not be published. Required fields are marked *

Tag: 0.44nm, 0.9deg step angle, 1000ppr, 42-48mm, 42mm encoder motor, nema 17 closed loop, ultrathin encoder

Related Products

  • nema-14-dual-shaft-closed-loop-stepper-motor

    Size 35mm NEMA 14 Dual Shaft Closed-loop Stepper Servo Motor 1.95A 0.22Nm with 1000PPR Encoder

    $55.00

  • nema-11-ultrathin-encoder-stepper-motor-0-12nm

    NEMA 11 Closed-loop Stepper Servo Motor 0.67A 0.12Nm with Ultrathin Magnetic Encoder 1000PPR

    $34.80

  • nema-24-closed-loop-stepper-motor-3nm

    Size 60mm NEMA 24 Closed Loop Stepper Servo Motor 5.0A 3.0Nm with1000PPR Encoder

    $45.00

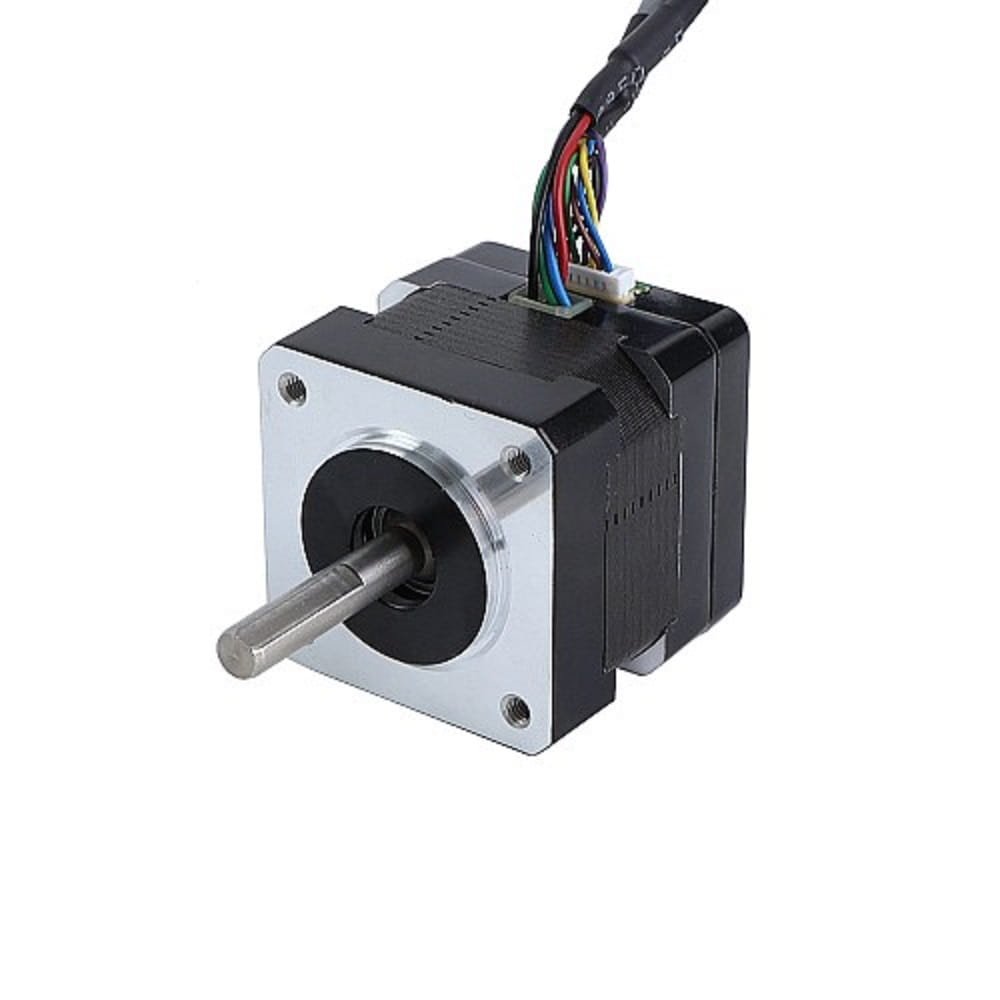

  • nema-14-ultrathin-encoder-stepper-motor-0-12nm
