Size 57mm NEMA 23 Stepper Motor 1.2Nm/2Nm/3Nm with 24V Electromagnetic Brake

Size 57mm NEMA 23 Stepper Motor 1.2Nm/2Nm/3Nm with 24V Electromagnetic Brake

Price range: $50.00 through $65.00

In Stock:

5

Model: 57AI-YS

Weight: 0.9KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 23 Stepper Motor Electromagnetic Brake: This strong NEMA 23 series stepper motor has a frame size 57mm, holding torque 1.2nm, 2nm, 3nm, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 23 Stepper Motor Electromagnetic Brake Specification

  • Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Driving Voltage: 24-48VDC
    Frame Size: 57x57mm
    Shaft Diameter: Φ8mm
    Shaft Length: 21mm
    57AI56-2804YS: 1.2Nm, 2.8A, Total Length 95mm
    57AI76-2804YS: 2.0Nm, 4.2A, Total Length 115mm
    57AI112-2804YS: 3.0Nm, 4.2A, Total Length 151mm

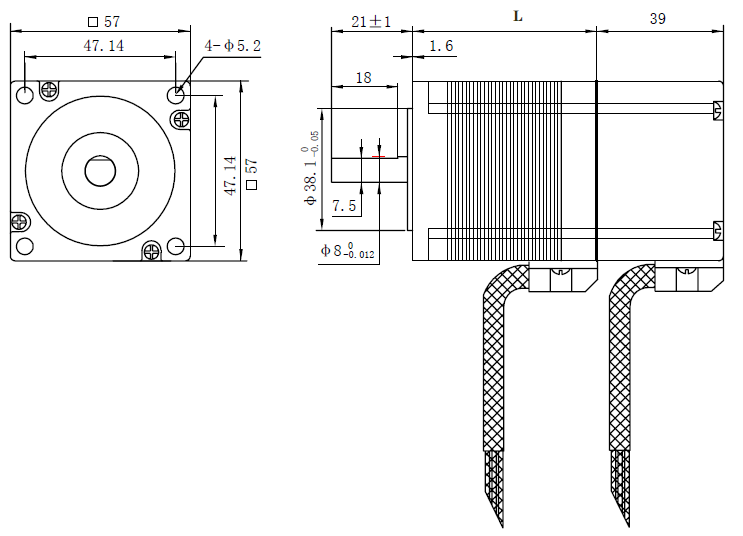

Overall Size

NEMA 23 Stepper Motor Electromagnetic Brake

Motor Wiring Connection: Black: A+, Green A-; Red: B+, Blue: B-

Brake Wiring Connection: Red: 24V+, Black: 24V-
