Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 1.6Nm 3.0A 57x65mm 4 Wires Φ8mm Shaft

$12.00

In Stock:

20

Model: 57HB65-3004S

Weight: 0.9KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

NEMA 23 Stepper Motor 65mm: This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 65mm. Each phase draws a current 3.0A, allowing for a strong holding torque of 1.6Nm. Please note this motor has a output shaft diameter 8mm.

NEMA 23 Stepper Motor 65mm Shaft Specification

  • Part Number: 57HB65-3004S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 1.6Nm
  • Rated Current/phase: 3.0A
  • Phase Resistance: 0.65ohms
  • Inductance: 3.2mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 65mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 18mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 850g
  • Stepper Drive: DM542

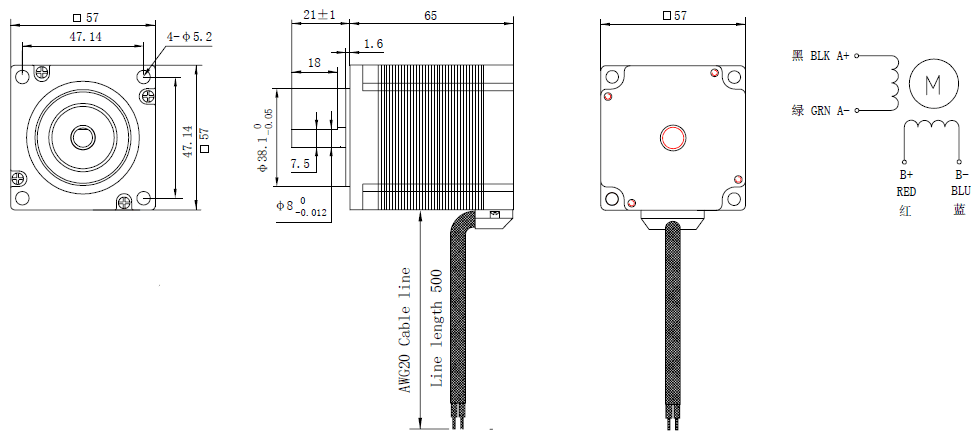

Overall Size

NEMA 23 Stepper Motor 65mm
