Size 57mm NEMA 23 Hollow Shaft Stepper Motor Dual Shaft 1.2Nm 2.8A 57x56mm

Size 57mm NEMA 23 Hollow Shaft Stepper Motor Dual Shaft 1.2Nm 2.8A 57x56mm

$35.00

In Stock:

5

Model: 57AI56-2804Q

Weight: 0.75KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Hollow Shaft Dual Shaft: This big size 57mm NEMA 23 hollow shaft stepper motor has a body length 56mm with 2.8A rated current & holding torque 1.2Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a dual shaft with front shaft length 20mm & rear shaft length 10mm is designed.

NEMA 23 Hollow Shaft Dual Shaft Specification

  • Part Number: 57AI56-2804Q
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 1.26Nm
    Rated Current/phase: 2.8A
    Driving Voltage: 24-48VDC
    Frame Size: 57x57mm
    Body Length: 55mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8.0mm
    Front Shaft Length: 20mm
    Rear Shaft Length: 10mm
    Number of Leads: 4
    Lead Length: 2000mm
    Weight: 0.85kg

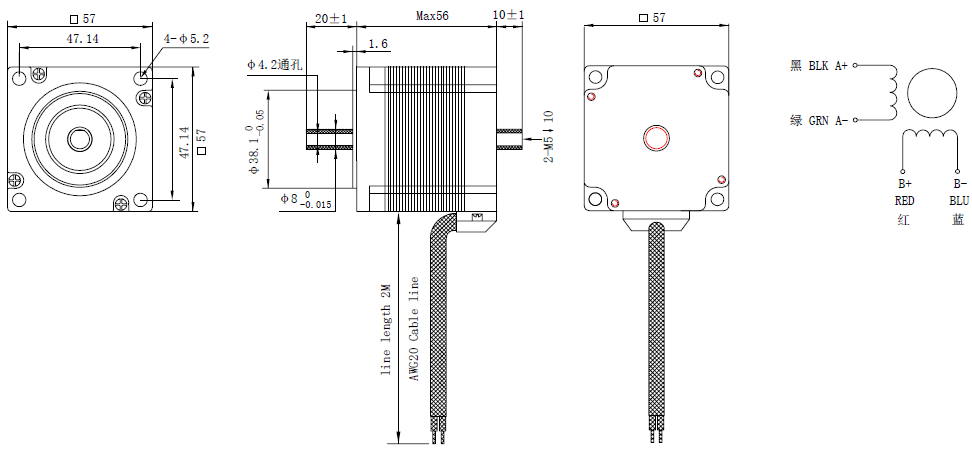

Overall Size

NEMA 23 Hollow Shaft Dual Shaft
