Size 57mm NEMA 23 Linear Actuator Stepper Motor Non-Captive 56mm Stack Lead 2mm/4mm/8mm Length 200mm

$50.00

In Stock:

30

Model: 57AI56-2804N-200N

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 23 Linear Actuator Stepper Motor Noncaptive: This size 57mm model is a NEMA 23 Non-captive type lead screw linear actuator stepper motor with a 56mm body length, 1.8 degree step angle and 2.8A rated current. It is integrated with a Φ10mm diameter, 200mm lead screw length, the linear travel is 2mm per revolution/0.01mm per step, 4mm per revolution/0.02mm per step, 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 23 Linear Actuator Stepper Motor Noncaptive Specification

NEMA 23 Linear Actuator Stepper Motor Noncaptive

  • Part Number: 57AI56-2804N-200N
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.8A
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 56mm
  • Lead Length: 200mm
  • Lead Screw Diameter: Φ10mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 700g
  • Stepper Drive: DM542

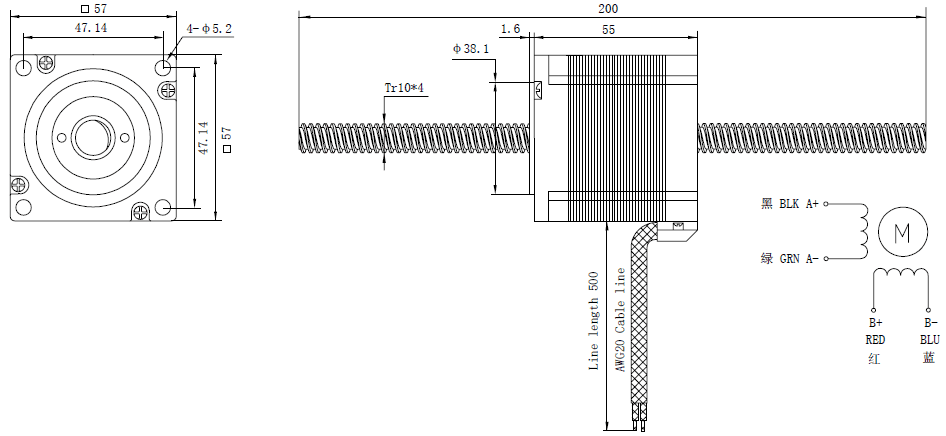

Overall Size

nema-23-linear-actuator-stepper-motor-noncaptive-type-56mm-stack

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
