Size 57mm NEMA 23 Closed-Loop Stepper Servo Motor 2Nm 1000CPR Encoder & Drive Controller Kit

Size 57mm NEMA 23 Closed-Loop Stepper Servo Motor 2Nm 1000CPR Encoder & Drive Controller Kit

$65.00

In Stock:

10

Model: 57AI76EC-1000

Weight: 2.3KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 closed-loop 2Nm: This frame size 57-76mm NEMA 23 closed loop stepper motor, equipped with a 1000cpr incremental optical encoder, has a rated current of 5.0A and a holding torque of 2.0Nm. This high performance easy servo motor has already recommended a suitable closed-loop stepper driver that all parameters are set well.

NEMA 23 closed-loop 2Nm Specification

NEMA 23 closed-loop 2Nm

  • Part Number: 57AI76EC-1000
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 2.0Nm
    Rated Current/phase: 5.0A
    Driving Voltage: 24-48VDC
    Frame Size: 57x57mm
    Body Length: 99mm
    Shaft Diameter: Φ8mm
    Shaft Length: 21mm
    D-cut Length: 15mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR
    Drive Voltage: 24-50VDC
    Drive Current: 0-6.0A
  • This CNC kit included:
    1 x 57AI76EC-1000: NEMA 23 Closed Loop Stepper Motor 2Nm with 1000CPR Encoder
    1 x 2D60BH: Closed Loop Stepper Driver 0-6.0A 24-50VDC
    1 x 3m Extension Motor & Encoder Cable Kit

If need higher performance closed loop stepper drive, we recomend Leadshine CL57C Closed-Loop Stepper Motor Drive

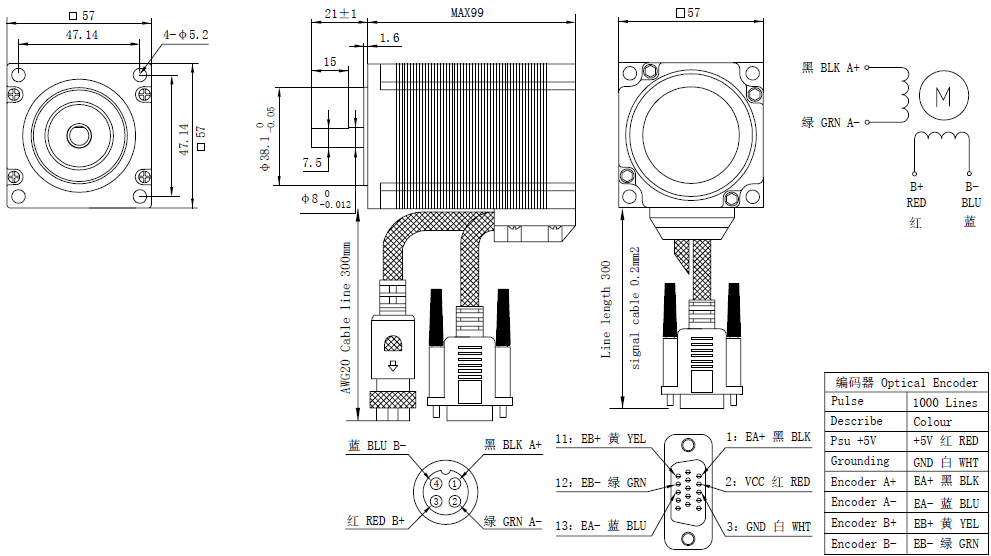

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)
Encoder 6 Leads Connection: A+(Black), A-(Blue); B+(Yellow), B-(Green), 5V(Red), GND((White)

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!

Reviews

There are no reviews yet.

Be the first to review “Size 57mm NEMA 23 Closed-Loop Stepper Servo Motor 2Nm 1000CPR Encoder & Drive Controller Kit”

Your email address will not be published. Required fields are marked *

Tag: 2nm, 57-76mm, nema 23 closed loop, nema 23 encoder

Related Products

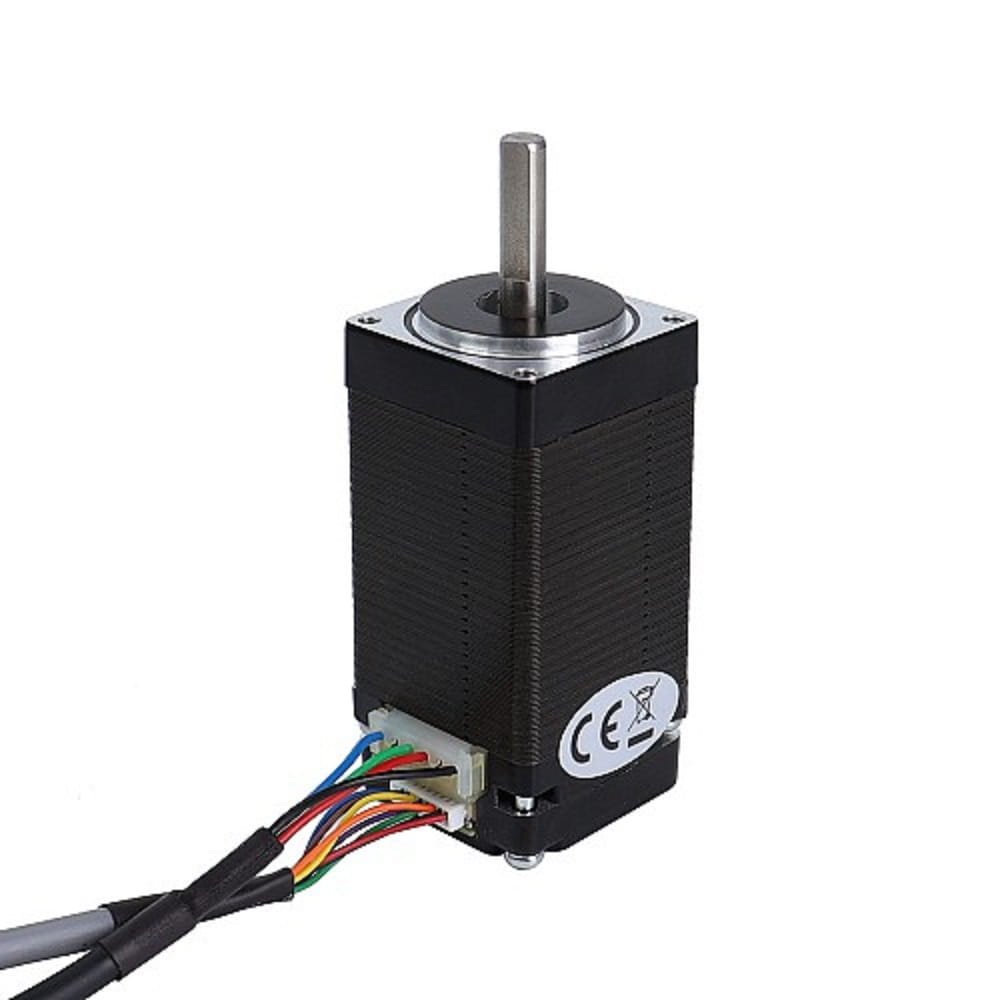

  • NEMA 11 Closed-loop Stepper Servo Motor 2A 0.12Nm 51mm
