nema-23-stepper-motor-low-current-76mm-1-0a

Size 57mm NEMA 23 Stepper Motor Bipolar 1.8deg 0.9Nm 1.0A 57x65mm 4 Wires Low Current

$15.00

In Stock:

5

Model: 57AI76-1004S

Weight: 1.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 23 Stepper Motor Low Current: This size 57mm NEMA 23 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 76mm. Each phase draws a very low current 1.0A, allowing for a compact holding torque of 0.9Nm & optimal working speed upto 1500RPM. Please note this motor has a output shaft diameter 6.35mm.

NEMA 23 Stepper Motor Low Current Specification

  • Part Number: 57AI76-1004S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.9Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 1.1ohms
  • Insulation Class: B 130°C
  • Inductance: 4.5mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 23.5mm
  • D-cut Length: 18mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.1kg

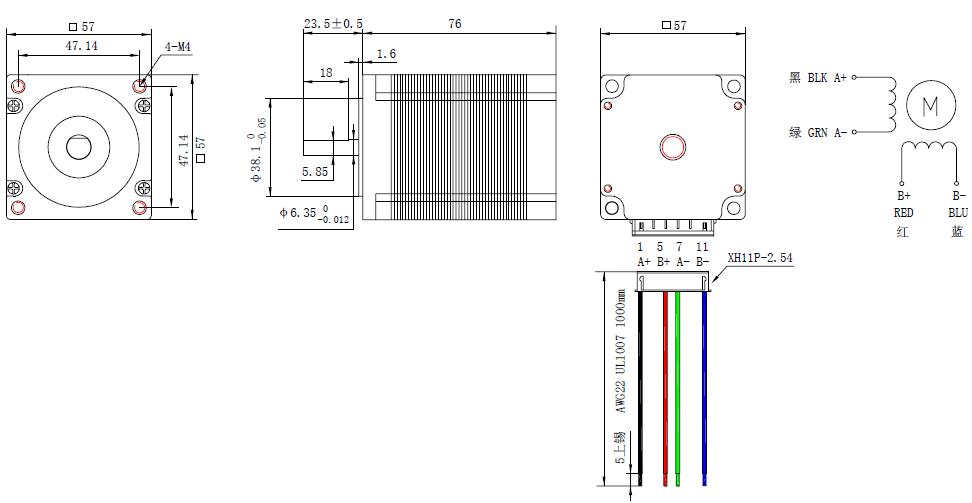

Overall Size

NEMA 23 Stepper Motor Low Current
