NEMA 17 Stepper Motor Short Axle Bipolar 1.8deg 0.16Nm 1.0A 42x23mm

$6.10

In Stock:

50

Model: 42AI23-1004D7

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

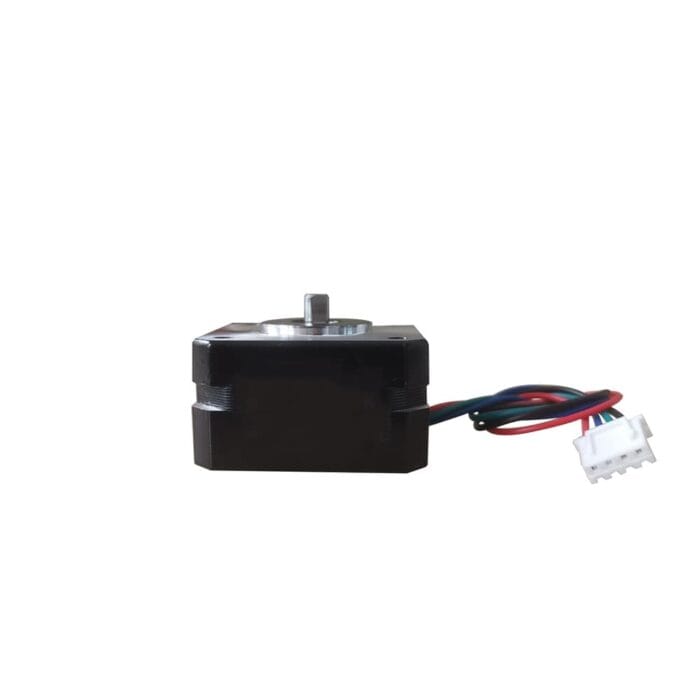

NEMA 17 Stepper Motor Short Axle: This compact size 42mm NEMA 17 hybrid bipolar stepping motor short axle has a 1.8° step angle(200 steps/revolution) and a ultrthin body length 23mm. Each phase draws current 1.0A, allowing for a strong holding torque of 0.16Nm.

NEMA 17 Stepper Motor Short Axle Specification

  • Part Number: 42AI23-1004D7
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.16Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 4.1ohms
  • Inductance: 3.6mH
  • Driving Voltage: 12-24V
  • Frame Size: 42x42mm
  • Body Length: 23mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 7mm
  • D-cut Length: 7mm
  • Number of Leads: 4
  • Lead Length: 120mm
  • Weight: 140g
  • Stepper Drive: FLKH2D0228DC

NEMA 17 Stepper Motor Short Axle
