NEMA 8 Stepper Motor Bipolar 1.8deg 0.04Nm 0.6A 20x38mm 4 Wires Flat Shaft

$10.50

In Stock:

50

Model: 20HS38-0604S

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

NEMA 8 Motor 38mm: This strong size 20mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 38mm. Each phase draws current 0.6A, allowing for a holding torque of 0.04Nm. Please note this motor has a 15.4mm bolt spacing & 16mm pilot circle and more details please refer to the data sheet of 20HS38-0604S.

NEMA 8 Motor 38mm Specification

  • Part Number: 20HS38-0604S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.04Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 12.5ohms
  • Inductance: 5.5mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 38mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ4mm
  • Shaft Length: 10mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 80g
  • Stepper Drive: FLKH2D0228DC

Overall Size

NEMA 8 Motor 38mm

Reviews

There are no reviews yet.

Be the first to review “NEMA 8 Stepper Motor Bipolar 1.8deg 0.04Nm 0.6A 20x38mm 4 Wires Flat Shaft”

Your email address will not be published. Required fields are marked *

Tag: 0.04nm, 0.6a, 20-38mm, high torque, nema 8

Related Products

  • nema-8-stepper-motor-30mm-0-6a-0-02nm-low-cost

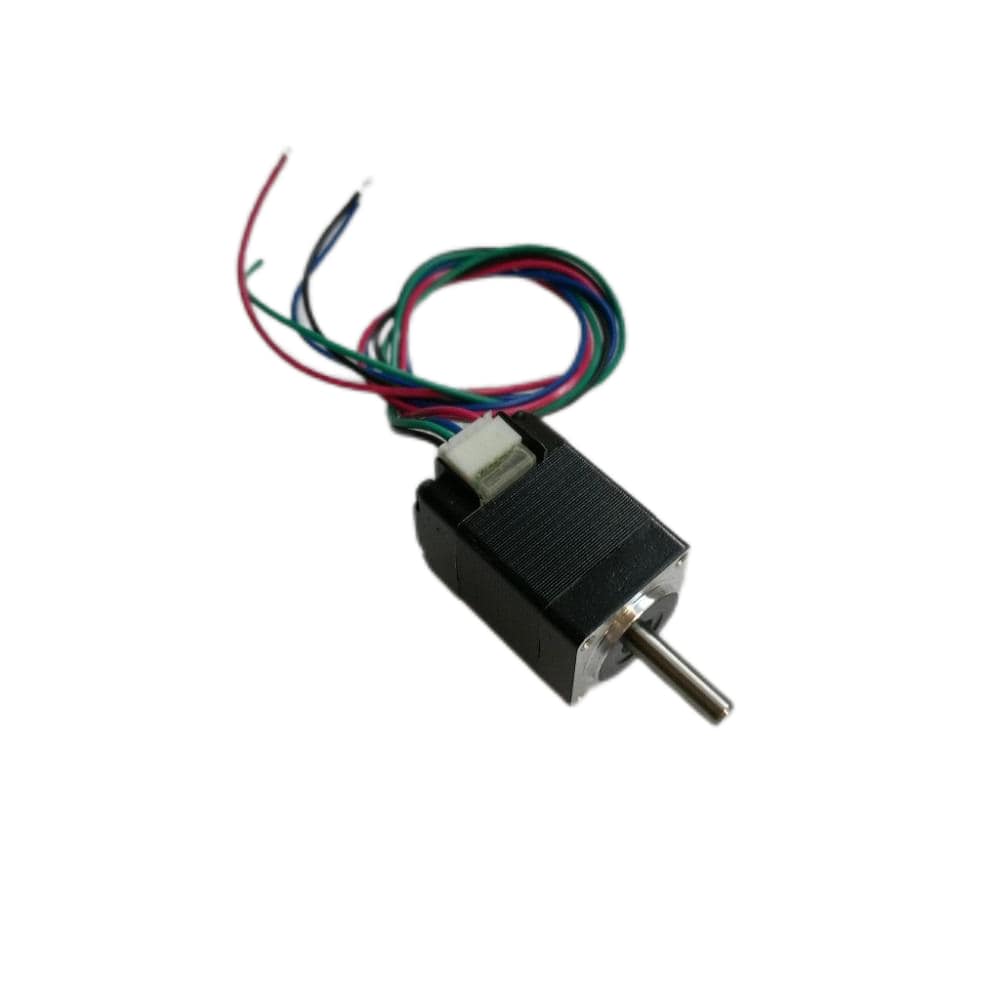

    Size 20mm NEMA 8 Stepper Motor Bipolar 1.8deg 0.02Nm 0.6A 20x30mm 4 Wires
