Size 14mm NEMA 6 Stepper Motor Hollow Shaft 0.005Nm 0.3A 14x30mm

$60.00

In Stock:

20

Model: 14HB30-0304H

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

14mm Stepper Motor Hollow Shaft: This small stepper motor with frame size 14x14x30mm has a hollow shaft, which has through hole diameter Φ2.2mm . It is widely used for laboratory test, optical instruments, semiconductor fabrication, etc.

14mm Stepper Motor Hollow Shaft Specification

  • Part Number: 14HB30-0304H
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.005Nm/1.4oz.in
  • Rated Current/phase: 0.3A
  • Phase Resistance: 22ohms
  • Inductance: 4.2mH
  • Driving Voltage: 5-24VDC
  • Frame Size: 14x14mm
  • Body Length: 30mm
  • Shaft Type: Hollow Shaft
  • Inner Shaft Diameter: Φ2.2mm
  • Outer Shaft Diameter: Φ4.0mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 30g

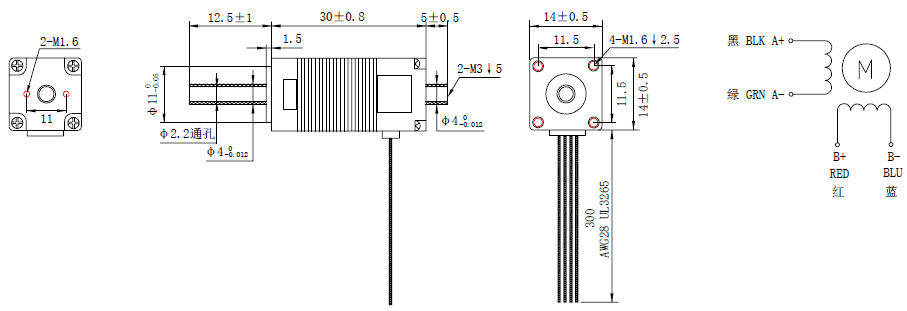

Overall Size

14mm Stepper Motor Hollow Shaft
