Size 20mm NEMA 8 Stepper Motor Dual Shaft 1.8deg 0.014Nm 0.6A 20x28mm with Rear Shaft

$10.90

In Stock:

20

Model: 20AI28-0604B

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

20 in stock (can be backordered)

NEMA 8 Stepper Motor Double Shaft: This small size 20mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 28mm. Each phase draws rated current 0.6A, allowing for a holding torque of 0.014Nm & optimal working speed upto 1000RPM. Please note this motor has a 15.4mm bolt spacing & 16.0mm pilot circle. More details, please refer to the data sheet of 20AI28-0604B.

NEMA 8 Stepper Motor Double Shaft Specification

  • Part Number: 20AI28-0604B
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.014Nm
  • Rated Current/phase: 0.6A
  • Phase Resistance: 3.2ohms
  • Inductance: 0.9mH
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 20x20mm
  • Body Length: 28mm
  • Shaft Diameter: Φ4mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 60g

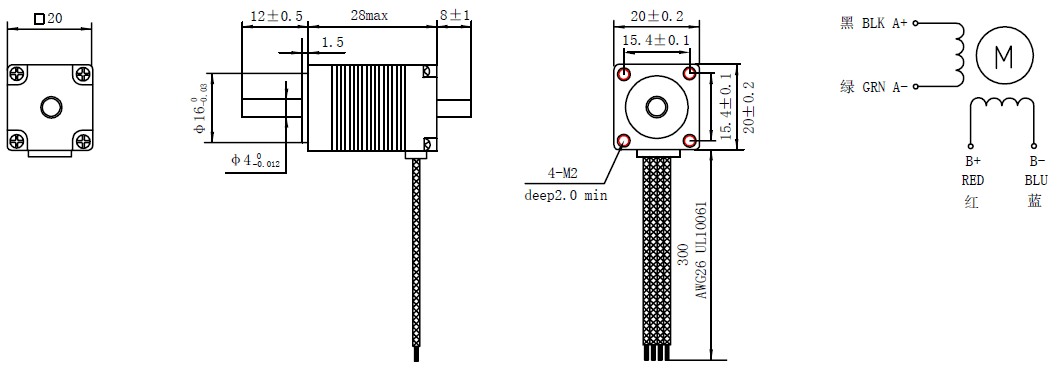

Overall Size

NEMA 8 Stepper Motor Double Shaft
