Size 35mm NEMA 14 Stepper Motor 0.18Nm with 24V Electromagnetic Brake

Size 35mm NEMA 14 Stepper Motor 0.18Nm with 24V Electromagnetic Brake

$45.00

In Stock:

5

Model: 35AI34-1004YS

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock

NEMA 14 Stepper Motor with Brake: This compact NEMA 14 stepper motor has a frame size 35-34mm, holding torque 0.18nm with rated current 1a, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 14 Stepper Motor with Brake Specification

  • Part Number: 35AI34-1004YS
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.18Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 35x35mm
    Body Length: 66mm
    Shaft Diameter: Φ5mm
    Shaft Length: 24mm
    D-cut Length: 15mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

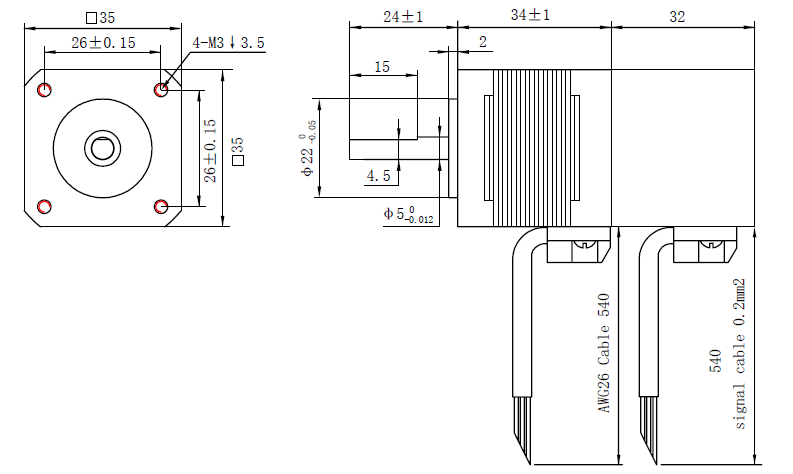

Overall Size

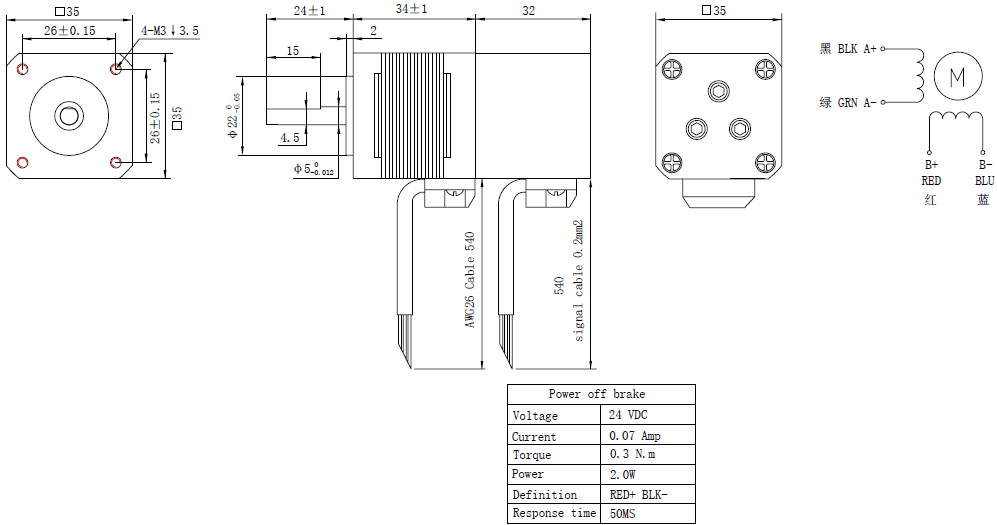

NEMA 14 Stepper Motor with Brake
