NEMA 17 Geared Closed-loop Stepper Motor with Ratio 10:1 High Precision Gearbox & Electromagnetic Brake

$120.00

In Stock:

10

Model: 42HB40-2004E-KGS10-YS

Weight: 1.5

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock

This size 42mm NEMA 17 geared closed loop motor with brake has integrated with a gear ratio 10:1 high precision planetary gearbox & a 24V electromagnetic brake. It generates a strong torque upto 4.0Nm and low speeds 0-100RPM, which are widely used for complex situations like robots control, semiconductor, medical devices, etc.

NEMA 17 Geared Closed Loop Motor with Brake

  • Part Number: 42HB40-2004E-KGS10-YS
  • Step Angle: 1.8deg without gearbox
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.45Nm without gearbox
  • Rated Current/phase: 2.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 132mm
  • Shaft Diameter: Φ8mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21.5mm
  • Keyway Length: 14mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC

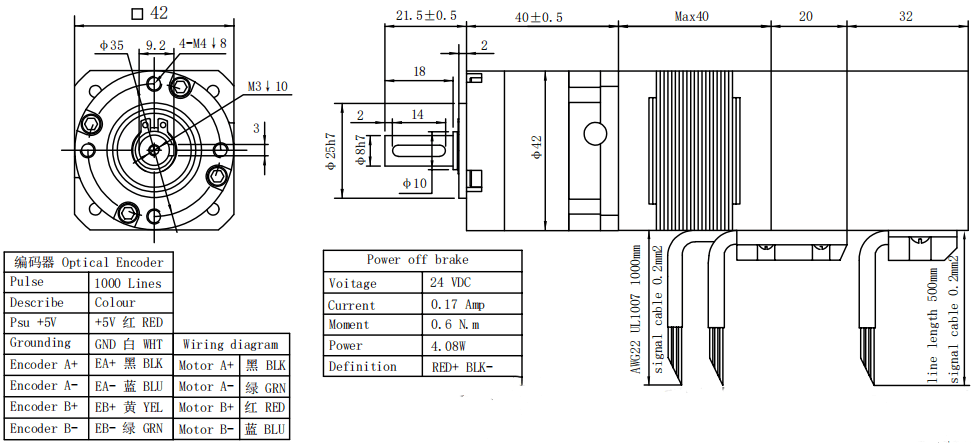

Overall Size

NEMA 17 Geared Closed Loop Motor with Brake
