Size 28mm NEMA 11 Hollow Shaft Stepper Motor Closed-loop 0.07Nm 1A 28x33mm with 2500CPR Encoder

Size 28mm NEMA 11 Hollow Shaft Stepper Motor Closed-loop 0.07Nm 1A 28x33mm with 2500CPR Encoder

$65.00

In Stock:

50

Model: 28AI33EC-1004K

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

NEMA 11 Hollow Shaft Stepper Motor with Encoder: This small size 28mm NEMA 11 hollow shaft closed-loop stepper motor with 2500cpr incremental optical encoder has a body length 33mm with 1.0A rated current & holding torque 0.07Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ3.7mm is available and also a double shaft with the front shaft length 16mm and rear shaft length 7.4mm is designed.

NEMA 11 Hollow Shaft Stepper Motor with Encoder Specification

NEMA 11 Hollow Shaft Stepper Motor with Encoder

  • Part Number: 28AI33EC-1004K
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.07Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 47.4mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 2500CPR
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ3.7mm
    Outer Diameter: Φ8.0mm
    Front Shaft Length: 16mm
    Rear Shaft Length: 7.4mm
    Number of Leads: 4
    Lead Length: 300mm
    Weight: 150g
  • Stepper Drive: CL42C

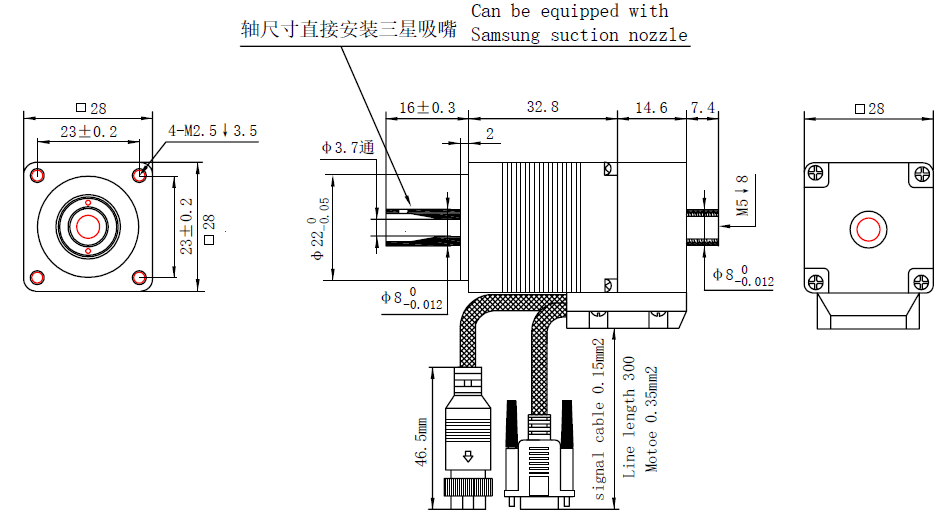

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
