Size 42mm NEMA17 Closed-loop Brushless DC Servo Motor 24V 64W 3000RPM 0.2Nm with 1000CPR Encoder

$75.00

In Stock:

10

Model: 42AI70-2430EC

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

42mm BLDC Motor with Encoder: This size 42mm 3 phase brushless dc servo motor has a body length 70mm with 1000cpr incremental optical encoder, rated voltage 24v and a moderate rated speed 3000rpm, which can reach 64w power and 0.2Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

42mm BLDC Motor with Encoder Specification

42mm BLDC Motor with Encoder

  • Part Number: 42AI70-2430EC
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Speed: 3000RPM
  • No-loading Speed: 4000RPM
  • Rated Torque: 0.2Nm
  • Rated Curent: 3.5A
  • Rated Power: 64W
  • Insulation Class: B
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR
  • Frame Size: 42x42mm
  • Body Length: 70mm(excluding encoder length)
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Number of Leads: 8
  • Lead Length: 1000mm
  • Sensor: Hall Sensor
  • Weight: 0.8kg

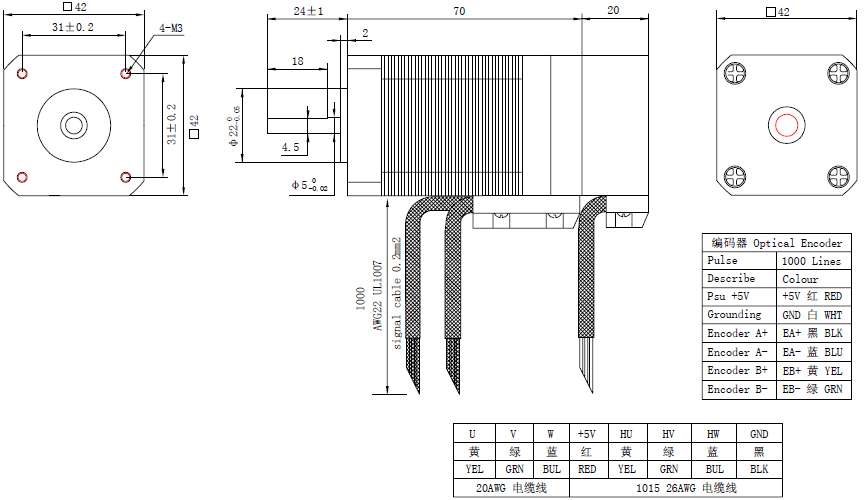

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
