Size 28mm NEMA 11 Hollow Shaft Stepper Motor Dual Shaft 0.067Nm 0.8A 28x34mm

Size 28mm NEMA 11 Hollow Shaft Stepper Motor Dual Shaft 0.067Nm 0.8A 28x34mm

$23.50

In Stock:

4

Model: 28AI34-0804K

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

4 in stock (can be backordered)

NEMA 11 Hollow Shaft Stepper 34mm: This small size 28mm NEMA 11 hollow shaft stepper motor has a body length 34mm with 0.8A rated current & holding torque 0.067Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a double shaft with the front shaft length 14mm and rear shaft length 7mm is designed.

NEMA 11 Hollow Shaft Stepper 34mm Specification

NEMA 11 Hollow Shaft Stepper 34mm

  • Part Number: 28AI34-0804K
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.067Nm
    Rated Current/phase: 0.8A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 34mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8mm
    Front Shaft Length: 14mm
    Rear Shaft Length: 7mm
    Number of Leads: 4
    Lead Length: 300mm
    Weight: 150g
  • Stepper Drive: FLKH2D1228DC

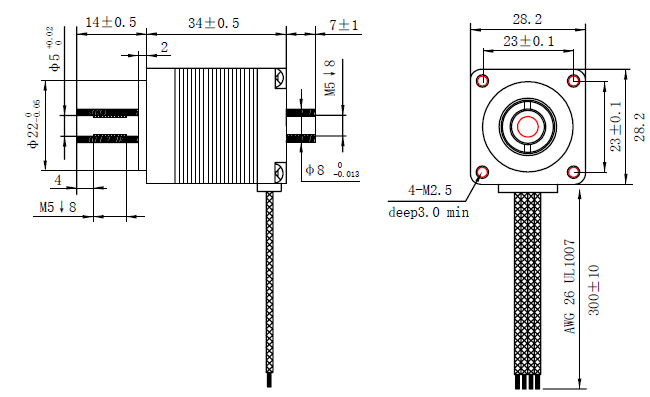

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
