Size 42mm NEMA 17 Linear Actuator Stepper Motor Captive Type 34mm Stack Lead 6.35mm Travel 25.4mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor Captive Type 34mm Stack Lead 6.35mm Travel 25.4mm

$75.00

In Stock:

5

Model: 42AI34-1504C-2540

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Linear Stepper Motor Captive: This size 42mm model is a NEMA 17 Captive type screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm diameter, 25.4mm stroke length, the linear travel is 6.35mm per revolution/0.03175mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Linear Stepper Motor Captive Specification

NEMA 17 Linear Stepper Motor Captive

  • Part Number: 42AI34-1504C-2540
  • Motor Type: Captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.5A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 34mm
  • Lead Travel: 25.4mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 6.35mm
  • Lead/Step: 0.03175mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 300g
  • Stepper Drive: FLKH2D1228DC

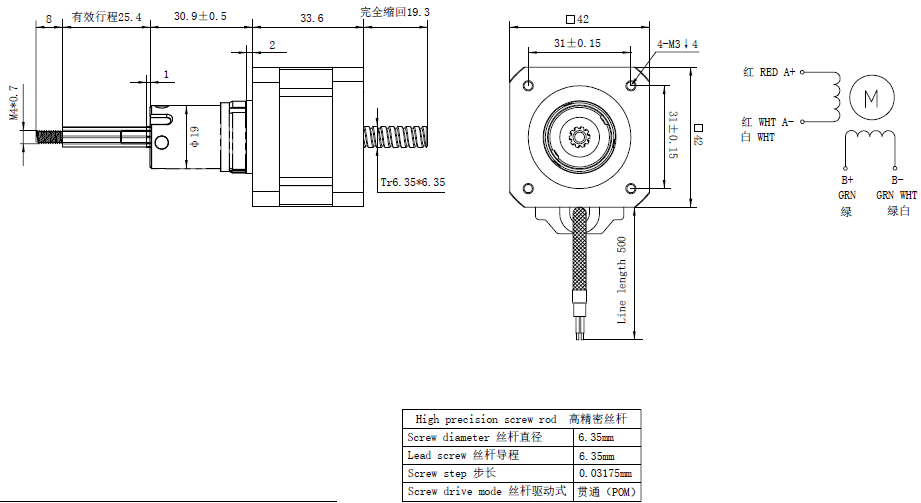

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!

Reviews

There are no reviews yet.

Be the first to review “Size 42mm NEMA 17 Linear Actuator Stepper Motor Captive Type 34mm Stack Lead 6.35mm Travel 25.4mm”

Your email address will not be published. Required fields are marked *

Tag: 0.003175mm step, 0.0127mm step, 25.4mm stroke, double stack, linear travel 19.05mm, nema 17 captive, nema 17 noncaptive, noncaptive linear stepper, single stack
