Size 60mm NEMA 24 Closed-Loop Stepper Servo Motor 5.0A 4.0Nm with1000PPR Encoder

$50.00

In Stock:

10

Model: 60AI100EC-1000

Weight: 2.2KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

Closed Loop Stepper Motor 4Nm: This frame size 60x60mm NEMA 24 closed loop stepper motor, equipped with a 1000PPE incremental optical encoder, has a rated current of 5.0A and high speed upto 3000RPM & a strong holding torque of 4.0Nm. It is widely used for CNC machines, robots, 3D printing, etc.

Closed loop Stepper Motor 4Nm Specification

  • Part Number: 60AI100EC-1000
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 4.0Nm
  • Rated Current/phase: 5.0A
  • Driving Voltage: 24-48VDC
  • Insulation Class: B 130°C
  • Frame Size: 60x60mm
  • Body Length: 124mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR

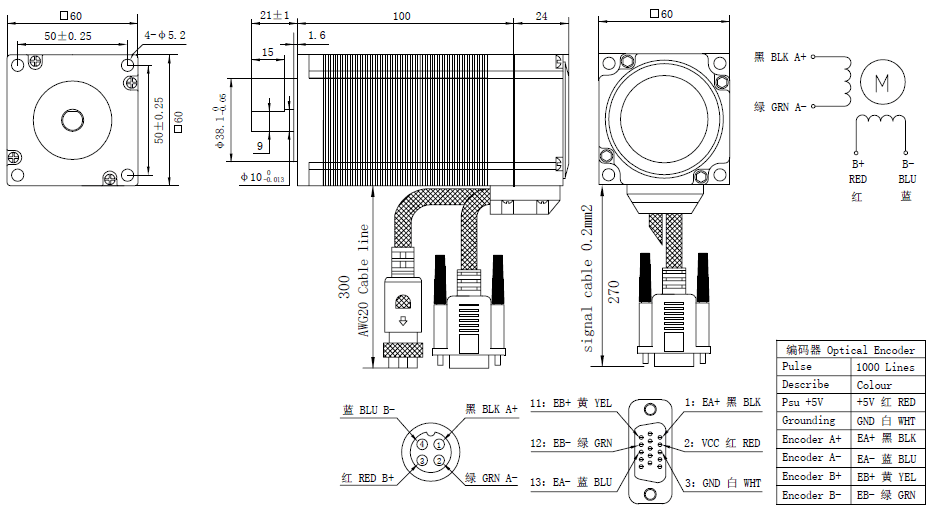

Overall Size

Closed loop Stepper Motor 4Nm
