Size 60mm NEMA 24 Closed-Loop Stepper Servo Motor 4Nm with 1000CPR Encoder & Electromagnetic Brake

Size 60mm NEMA 24 Closed-Loop Stepper Servo Motor 4Nm with 1000CPR Encoder & Electromagnetic Brake

$105.00

In Stock:

5

Model: 60AI102EC-YS

Weight: 3.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 24 Motor with Brake and Encoder: This frame size 60-102mm NEMA 24 closed loop stepper motor, equipped with a 1000cpr incremental optical encoder & 24v electromagnetic brake, has a rated current of 5.8A and a holding torque of 4Nm. These high performance closed-loop motors is an ideal choice for the applications that require frequently stop and run or vertical working. Suggested drive: Leadshine CL57C Closed-Loop Stepper Motor Drive

NEMA 24 Motor with Brake and Encoder Specification

NEMA 24 Motor with Brake and Encoder

  • Part Number: 60AI102EC-YS
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 4.0Nm
    Rated Current/phase: 5.8A
    Driving Voltage: 24-48VDC
    Frame Size: 60x60mm
    Body Length: 162.5mm
    Shaft Diameter: Φ10mm
    Shaft Length: 21mm
    D-cut Length: 15mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

Only need stepper motor with brake, recommend Model: 60AI100-4204YS

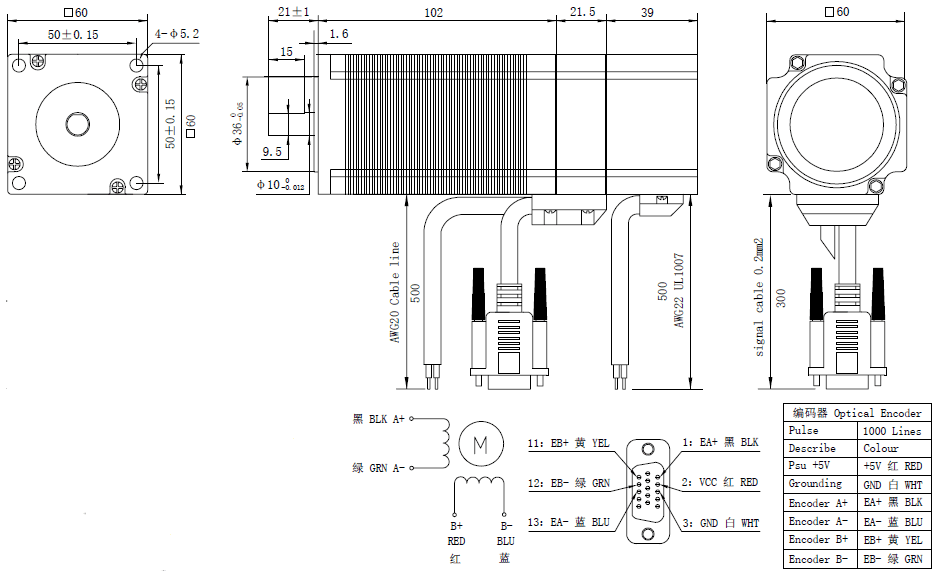

Overall Size

Brake 2 Leads Connection: A+(Red), A-(Black)
Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)
Encoder 6 Leads Connection: A+(Black), A-(Blue); B+(Yellow), B-(Green), 5V(Red), GND((White)

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!
