NEMA 42 Stepper Motor 1.2deg 20Nm 6.8A 110x218mm

3 Phase NEMA 42 Stepper Motor 1.2deg 20Nm 6.8A 110x218mm 3 Leads

$185.00

In Stock:

4

Model: 110AI218-6803S

Weight: 9.5KG

Certificated: ISO, CE, RoHS

Ships From China

4 in stock (can be backordered)

NEMA 42 Stepper Motor 20Nm: This size 110mm 3 Phase NEMA 42 hybrid bipolar stepping motor has a 1.2° step angle(300 steps/revolution) and a body length 218mm. Each phase draws a rated current 6.8A, allowing for a strong holding torque of 20Nm/2840oz.in.

NEMA 42 Stepper Motor 20Nm Specification

  • Part Number: 110AI218-6803S
  • Step Angle: 1.2deg
  • Holding Torque: 20Nm/2840oz.in
  • Rated Current/phase: 6.8A
  • Phase Resistance: 1.2ohms
  • Inductance: 22mH
  • Driving Voltage: 110-220VAC
  • Frame Size: 110x110mm
  • Body Length: 218mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 40mm
  • Keyway Length: 31mm
  • Number of Leads: 3
  • Lead Length: 3000mm
  • Weight: 9.5kg
  • Stepper Drive: 3DM2283

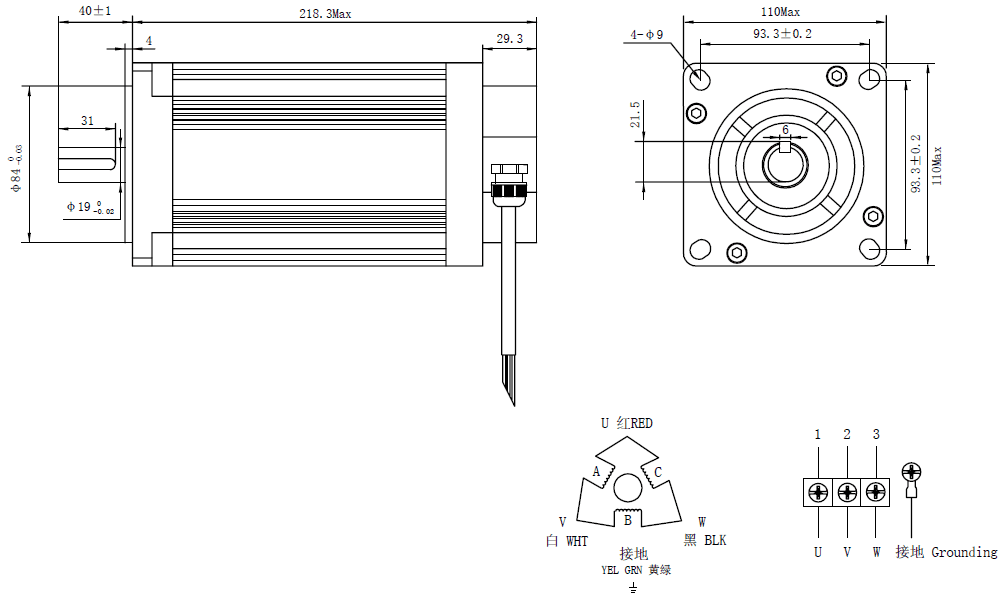

Overall Size:

NEMA 42 Stepper Motor 20Nm
