Size 20mm NEMA 8 Linear Actuator Stepper Motor External Type 30mm Stack Lead 2mm Length 50mm

Size 20mm NEMA 8 Linear Actuator Stepper Motor External Type 30mm Stack Lead 2mm Length 50mm

$45.00

In Stock:

5

Model: 20AI30-0604E-50N52

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

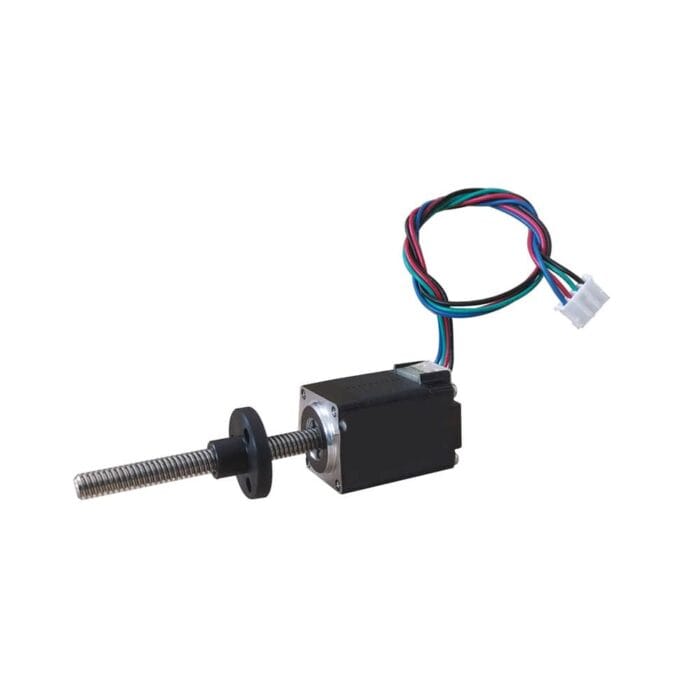

NEMA 8 Linear Stepper Motor External: This size 20mm model is a NEMA 8 External type lead screw linear stepper motor with a 30mm body length, 1.8 degree step angle and 0.6A rated current. It is integrated with a Φ5mm diameter, 50mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 8 Linear Stepper Motor External Specification

NEMA 8 Linear Stepper Motor External

  • Part Number: 20AI30-0604E-50N52
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.6A
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 30mm
  • Lead Screw Length: 50mm
  • Lead Screw Diameter: Φ5mm
  • Lead/Revolution: 2.0mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 60g
  • Stepper Drive: FLKH2D1228DC

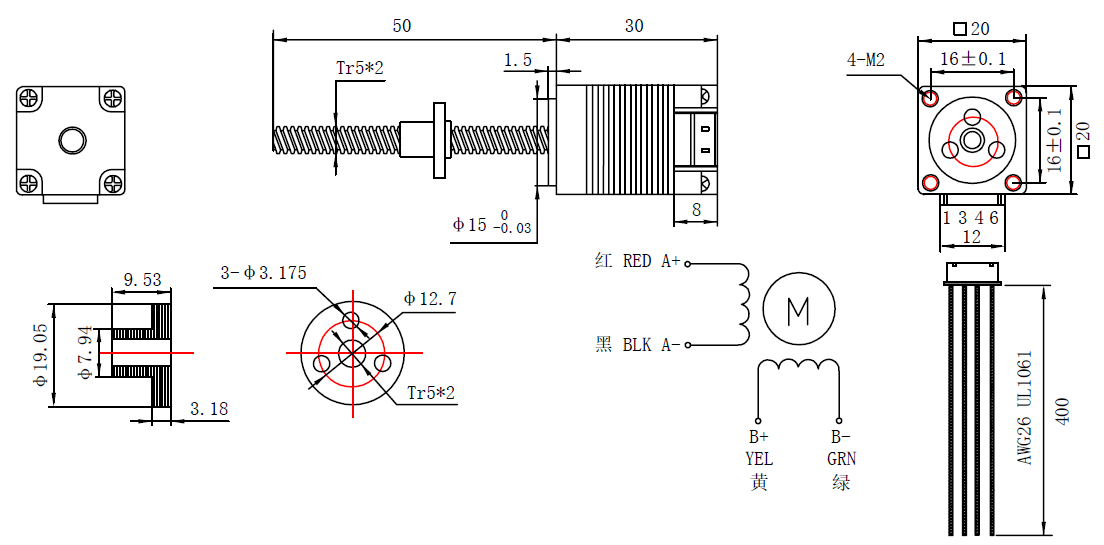

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
