Size 20mm NEMA 8 Linear Actuator POM Screw Nut Stepper Motor 30mm Stack Lead 2mm Length 100mm

$38.80

In Stock:

10

Model: 20AI30-0604E-100L52

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 8 Linear Motor Lead 2mm: This size 20mm precision linear actuator motor is a NEMA 8 External type lead screw linear stepper motor with a 30mm body length, 1.8 degree step angle and 0.6A rated current. It is integrated with a lead screw of Φ5mm diameter, 145mm and a parallel POM screw nut, the linear travel is 2.0mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long lifespan, low noise and high efficiency.

NEMA 8 Linear Motor Lead 2mm Specification

  • Part Number: 20AI30-0604E-100L52
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.6A
  • Holding Torque: 0.02Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 30mm
  • Lead Screw Length: 100mm
  • Lead Screw Diameter: Φ5mm
  • Lead/Revolution: 2.0mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 100g

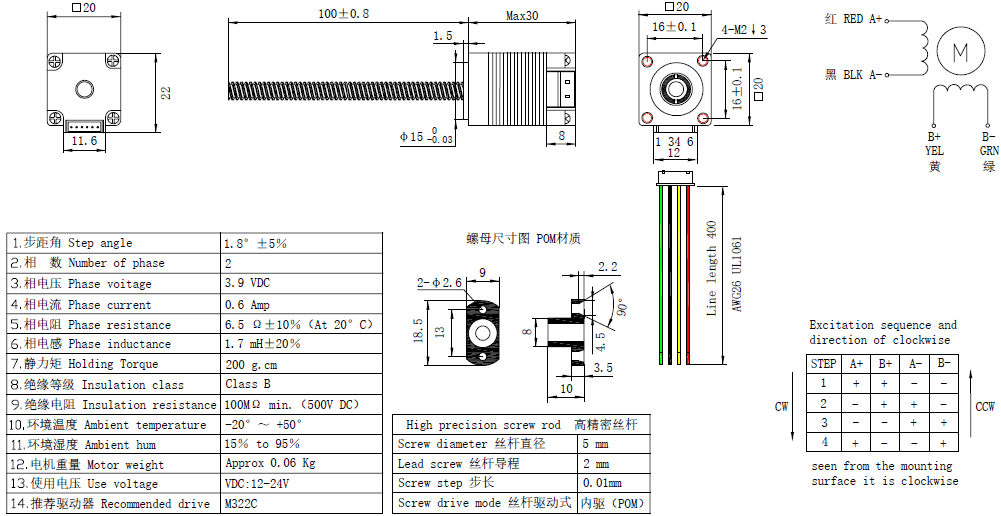

Overall Size

NEMA 8 Linear Motor Lead 2mm
