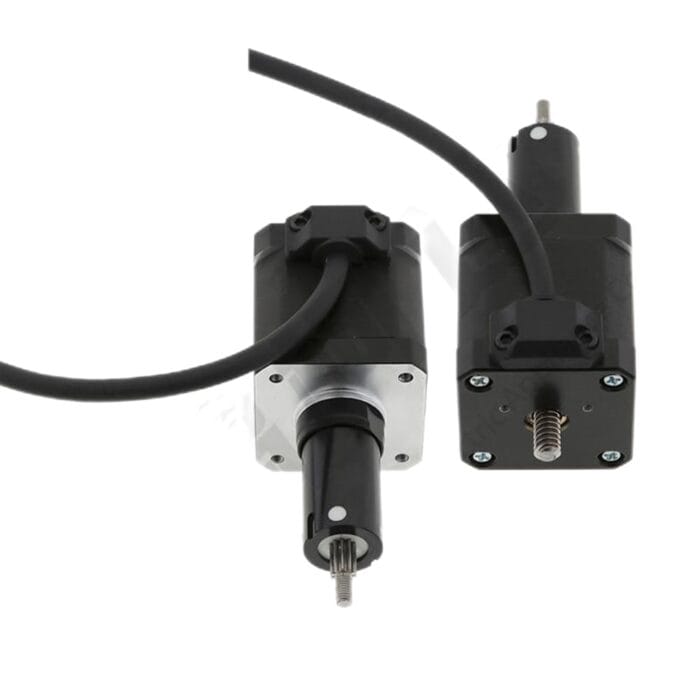

Size 42mm NEMA 17 Linear Actuator Stepper Motor Captive Type 48mm Stack Lead 3mm Travel 31.8mm

$60.00

In Stock:

10

Model: 42AI48-2504C-3180

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 17 Captive Linear Stepper: This size 42mm linear model is a NEMA 17 Captive type screw linear actuator stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a Φ6.35mm diameter, 19.05mm stroke length, the linear travel is 3mm per revolution/0.015mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Captive Linear Stepper Specification

  • Part Number: 42AI48-2504C-3180
  • Motor Type: Captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.5A
  • Holding Torque: 0.5Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Stroke Length: 31.8mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 3mm
  • Lead/Step: 0.015mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 45g

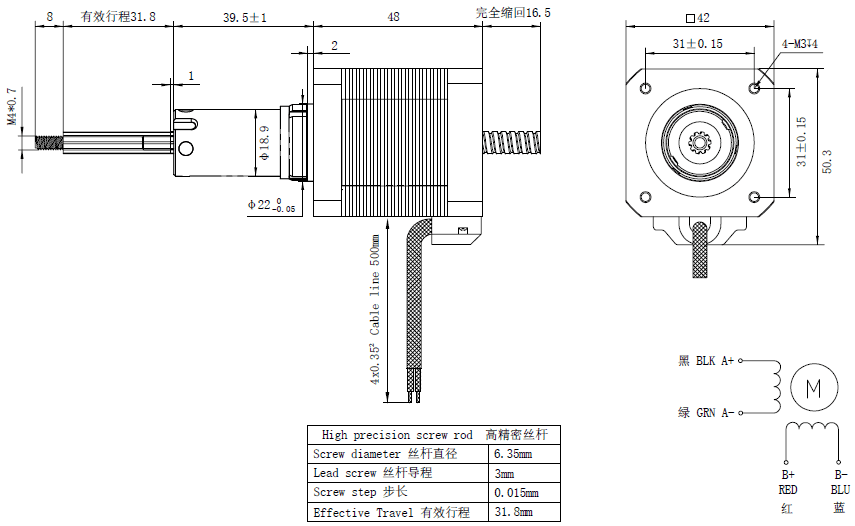

Overall Size

NEMA 17 Captive Linear Stepper
