Size 110mm NEMA 42 Stepper Motor 20Nm with 24V Electromagnetic Brake

Size 110mm NEMA 42 Stepper Motor 20Nm with 24V Electromagnetic Brake

$250.00

In Stock:

5

Model: 110AI150-6004YS

Weight: 11KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 42 Stepper Motor with Electromagnetic Brake: This big NEMA 42 stepper motor has a frame size 110-150mm, holding torque 20nm with rated current 6a, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 42 Stepper Motor with Electromagnetic Brake Specification

  • Part Number: 110AI150-6004YS
    Phase NUmber: 2
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 20.0Nm
    Rated Current/phase: 6.0A
    Driving Voltage: 110-220VAC
    Frame Size: 110x110mm
    Body Length: 200mm
    Shaft Diameter: Φ19mm
    Shaft Length: 55mm
    Keyway Length: 35mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

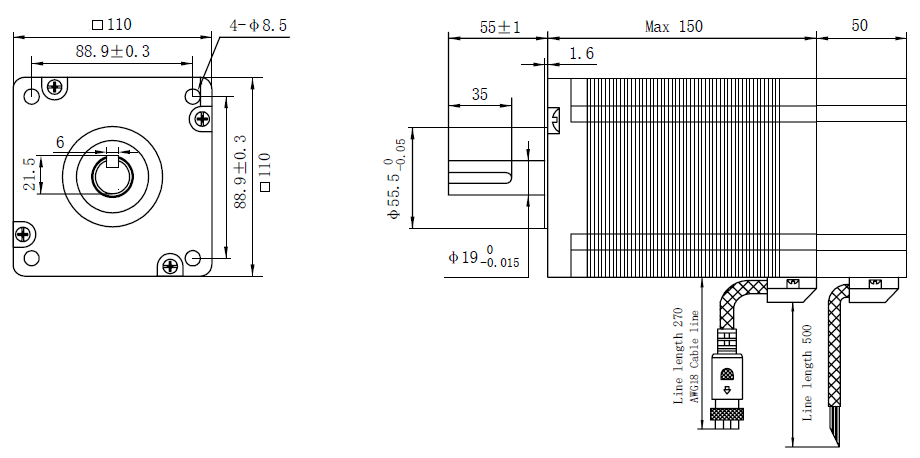

Overall Size

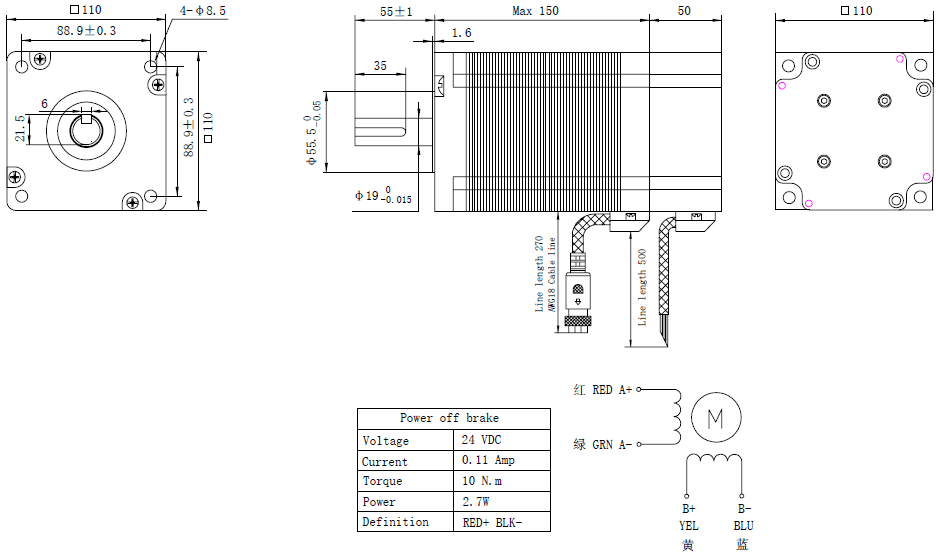

NEMA 42 Stepper Motor with Electromagnetic Brake
