Size 57mm NEMA 23 Closed-loop Stepper Servo Motor 3Nm with 1000CPR Encoder & Keyway Shaft

Size 57mm NEMA 23 Closed-loop Stepper Servo Motor 3Nm with 1000CPR Encoder & Keyway Shaft

$45.00

In Stock:

10

Model: 57AI112EC-1000

Weight: 2.1KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 stepper servo motor: This frame size 57-112mm NEMA 23 closed loop stepper motor, equipped with a 1000cpr incremental optical encoder, has a rated current of 4.6A and a holding torque of 3.0Nm and a keyway shaft type. It offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors. Recomended drive: Leadshine CL57C Closed-Loop Stepper Motor Drive

NEMA 23 stepper servo motor Specification

NEMA 23 stepper servo motor

  • Part Number: 57AI112EC-1000
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 3.0Nm
    Rated Current/phase: 4.6A
    Driving Voltage: 24-48VDC
    Frame Size: 57x57mm
    Body Length: 135mm
    Shaft Diameter: Φ8mm
    Shaft Length: 21mm
    Keyway Length: 15mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR

A small  tip:

A servo motor is a type of electric motor that is designed to rotate a shaft to a specific angle with high precision. Unlike a regular DC motor, which simply spins when voltage is applied, a servo motor can be controlled to turn to a specific position and hold it there.

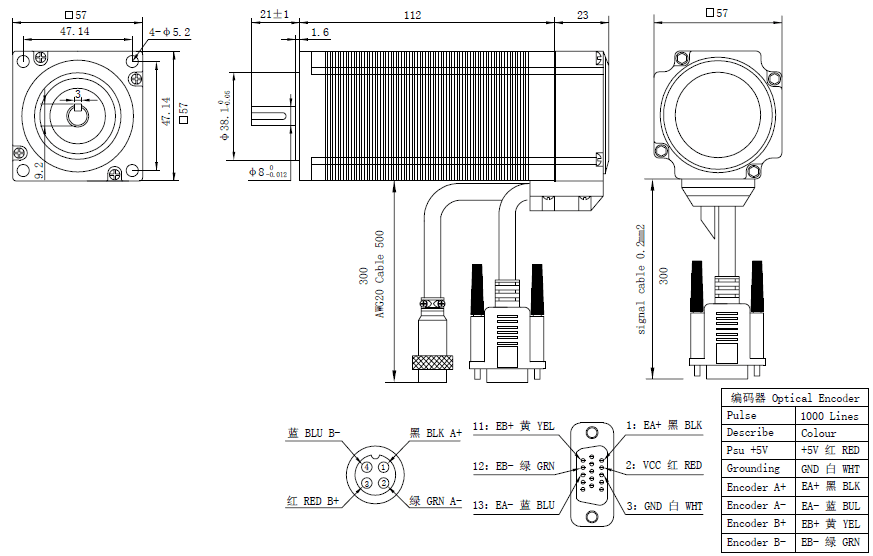

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)
Encoder 6 Leads Connection: A+(Black), A-(Blue); B+(Yellow), B-(Green), 5V(Red), GND((White)

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!
