Size 60mm NEMA 24 Stepper Motor Bipolar 1.8deg 3Nm 4.2A 60x86mm Φ8mm Shaft

Size 60mm NEMA 24 Stepper Motor Bipolar 1.8deg 3Nm 4.2A 60x86mm Φ8mm Shaft

$20.00

In Stock:

25

Model: 60AI86-4204S

Weight: 1.5KG

Certificated: ISO, CE, RoHS

Ships From China

25 in stock (can be backordered)

NEMA 24 Stepper Motor 3Nm: This size 60mm NEMA 24 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a body length 86mm. Each phase draws a current 4.2A, allowing for a strong holding torque of 3.0Nm.

NEMA 24 Stepper Motor 3Nm Specification

NEMA 24 Stepper Motor 3Nm

  • Part Number: 60AI86-4204S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 3.0Nm
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.7ohms
  • Inductance: 3.0mH
  • Driving Voltage: 24-48VDC
  • Frame Size: 60x60mm
  • Body Length: 86mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.4kg
  • Stepper Drive: DM556

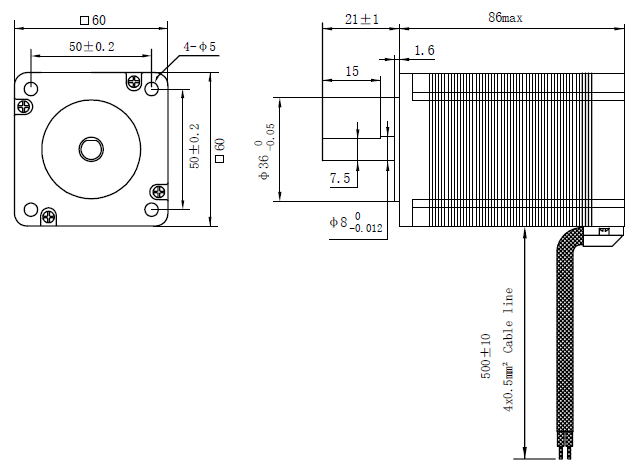

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
