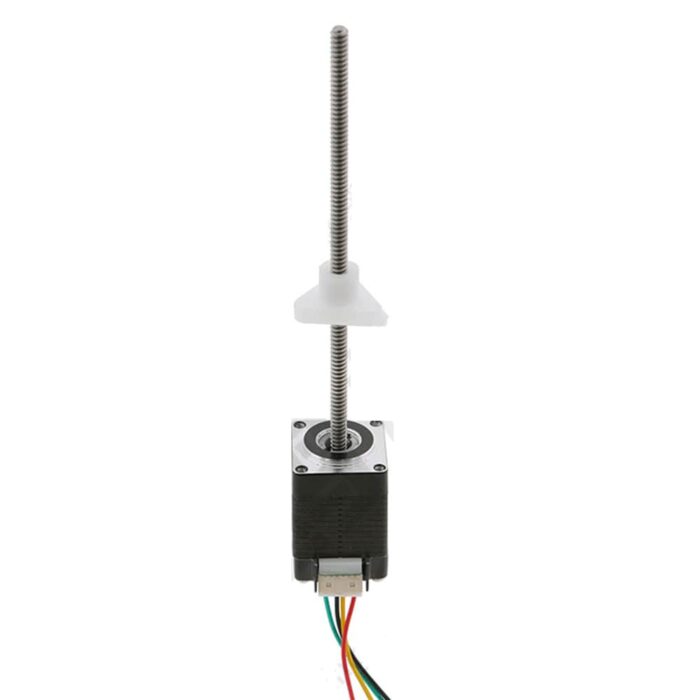

Size 20mm NEMA 8 Linear Actuator Screw POM Nut Stepper Motor 30mm Stack Lead 1mm Length 145mm

$45.00

In Stock:

10

Model: 20AI30-0604E-145L1

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 8 Linear Stepper Lead 1mm: This size 20mm precision linear actuator motor is a NEMA 8 External type lead screw linear stepper motor with a 30mm body length, 1.8 degree step angle and 0.6A rated current. It is integrated with a lead screw of Φ3.5mm diameter, 145mm and a triangle POM screw nut, the linear travel is 1.0mm per revolution/0.005mm per step. It has the characteristics of high performance, high thrust, long lifespan, low noise and high efficiency.

NEMA 8 Linear Stepper Lead 1mm Specification

  • Part Number: 20AI30-0604E-145L1
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.6A
  • Holding Torque: 0.04Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 30mm
  • Lead Screw Length: 145mm
  • Lead Screw Diameter: Φ3.5mm
  • Lead/Revolution: 1.0mm
  • Lead/Step: 0.005mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 100g

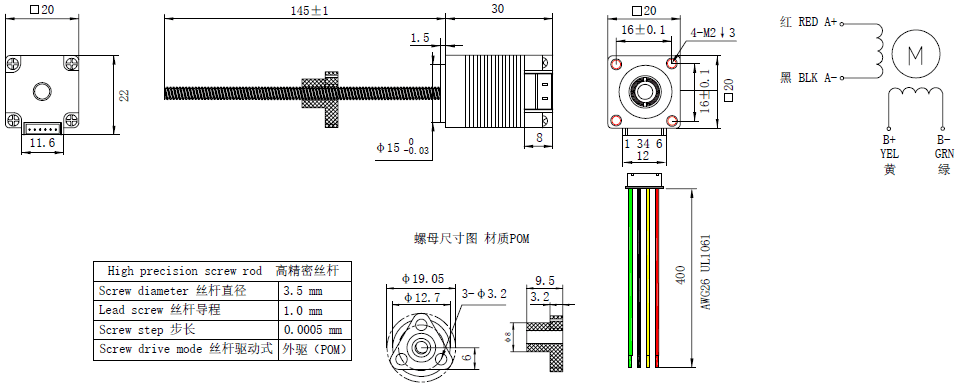

Overall Size

NEMA 8 Linear Stepper Lead 1mm
