Size 14mm NEMA 6 External Linear Stepper Motor 32mm Stack Lead 1mm Screw Length 57mm

$99.00

In Stock:

5

Model: 14AI32-0304E-57L1

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

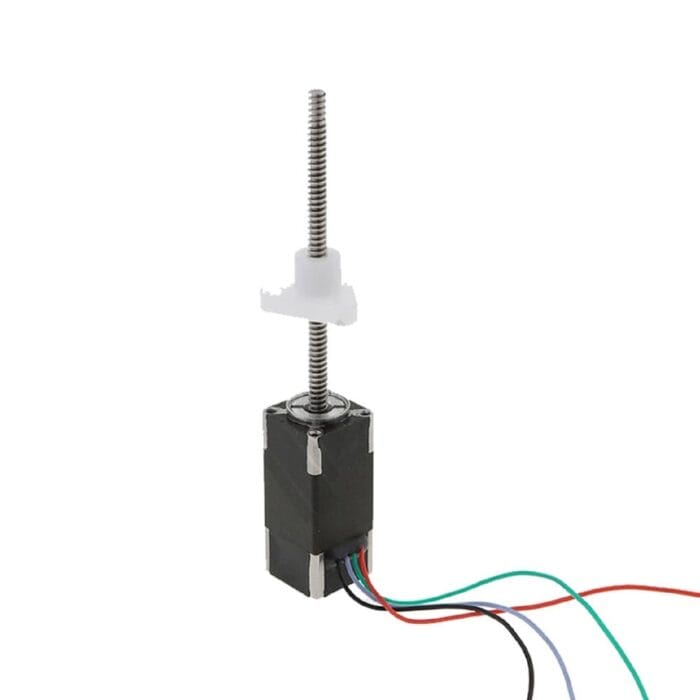

NEMA 6 Linear Stepper Motor: This small size 14mm linear actuator engine is a NEMA 6 External type lead screw linear stepper motor with a 32mm body length, 1.8 degree step angle and 0.3A rated current. It is integrated with a Φ3.5mm diameter, 57mm lead screw length and a POM screw nut, the linear travel is 1mm per revolution/0.005mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 6 Linear Stepper Motor Specification

  • Part Number: 14AI32-0304E-57L1
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.3A
  • Holding Torque: 0.005Nm
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 14x14mm
  • Body Length: 32mm
  • Lead Screw Length: 57mm
  • Lead Screw Diameter: Φ3.5mm
  • Lead/Revolution: 1.0mm
  • Lead/Step: 0.005mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 30g

Overall Size

NEMA 6 Linear Stepper Motor
