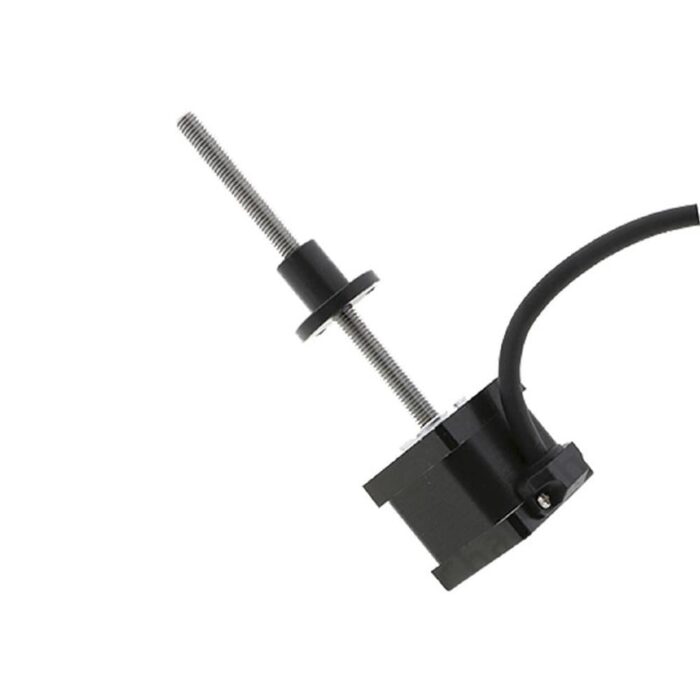

NEMA 14 Linear Actuator Stepper Motor External 34mm Stack Screw Dia. 6.35mm Lead 2mm Length 100mm

$50.00

In Stock:

5

Model: 35AI34-1504E-100L2

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 14 Linear Stepper Motor Lead 2mm: This size 34mm linear actuator engine is a NEMA 14 External type lead screw linear stepper motor with a single stack/34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm diameter, 100mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 14 Linear Stepper Motor Lead 2mm Specification

  • Part Number: 35AI34-1504E-100L2
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.5A
  • Holding Torque: 0.18Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 34mm
  • Lead Screw Length: 100mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 2.0mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 250g

Overall Size

NEMA 14 Linear Stepper Motor Lead 2mm
