Size 57mm NEMA 23 Hollow Shaft Stepper Motor 2Nm 4.2A 57x76mm

Size 57mm NEMA 23 Hollow Shaft Stepper Motor 2Nm 4.2A 57x76mm

$40.00

In Stock:

5

Model: 57AI76-4204K

Weight: 1.15KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Hollow Shaft Stepper Motor 2Nm: This big size 57mm NEMA 23 hollow shaft stepper motor has a body length 76mm with 4.2A rated current & holding torque 2.0Nm. A hollow shaft with outer diameter Φ15mm & inner diameter Φ10mm is available.

NEMA 23 Hollow Shaft Stepper Motor 2Nm Specification

NEMA 23 Hollow Shaft Stepper Motor 2Nm

  • Part Number: 57AI76-4204K
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 2.0Nm
    Rated Current/phase: 4.2A
    Driving Voltage: 24-48VDC
    Frame Size: 57x57mm
    Body Length: 76mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ10mm
    Outer Diameter: Φ15mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 1.2kg
  • Stepper Drive: DM556

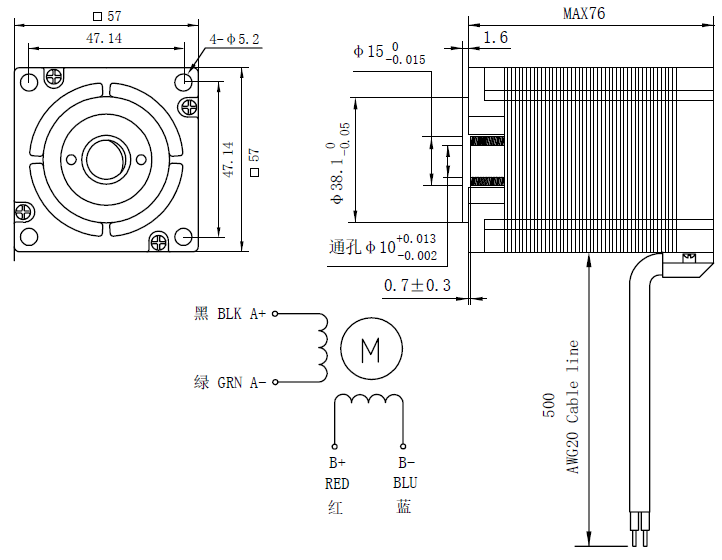

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
