Size 57mm NEMA 23 Hollow Shaft Stepper Motor Dual Shaft 2Nm 4.2A 57x76mm

Size 57mm NEMA 23 Hollow Shaft Stepper Motor Dual Shaft 2Nm 4.2A 57x76mm

$40.00

In Stock:

5

Model: 57AI76-4204Q

Weight: 1.15KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Hollow Shaft Long Axis: This big size 57mm NEMA 23 hollow shaft stepper motor has a body length 76mm with 4.2A rated current & holding torque 2.0Nm. A hollow shaft with outer diameter Φ15mm & inner diameter Φ12mm is available and also a dual shaft with front shaft length 30mm & rear shaft length 10mm is designed.

NEMA 23 Hollow Shaft Long Axis SpecificationNEMA 23 Hollow Shaft Long Axis

  • Part Number: 57AI76-4204Q
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 2.0Nm
    Rated Current/phase: 4.2A
    Driving Voltage: 24-48VDC
    Frame Size: 57x57mm
    Body Length: 76mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ12mm
    Outer Diameter: Φ15mm
    Front Shaft Length: 30mm
    Rear Shaft Length: 10mm
    Number of Leads: 4
    Lead Length: 1000mm
    Weight: 1.2kg
  • Stepper Drive: DM556

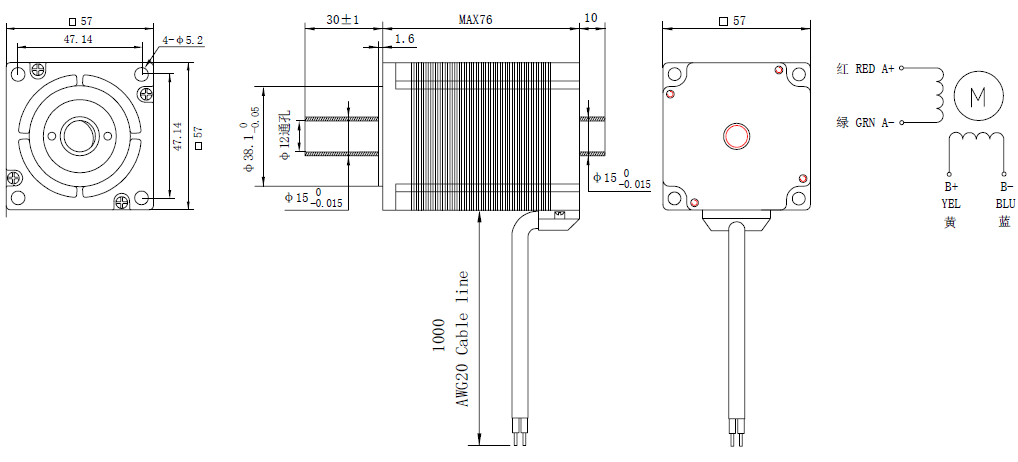

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.

Reviews

There are no reviews yet.

Be the first to review “Size 57mm NEMA 23 Hollow Shaft Stepper Motor Dual Shaft 2Nm 4.2A 57x76mm”

Your email address will not be published. Required fields are marked *

Tag: 2nm, 4.2a, 57-76mm, dual shaft motor, hollow shaft, long axis
