Size 57mm NEMA 23 Dual Shaft Precision Planetary Gearbox Stepper Motor Gear Ratio 50:1 with Rear Shaft

Size 57mm NEMA 23 Dual Shaft Precision Planetary Gearbox Stepper Motor Gear Ratio 50:1 with Rear Shaft

$65.00

In Stock:

10

Model: 57AI56-2804D-HG50

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Dual Shaft Geared Motor: This big geared dual shaft stepper motor has a frame size 57-56mm with rated current 2.8a, integrated with a precision planetary gearbox & a length of 15mm rear shaft. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 23 Dual Shaft Geared Motor Specification

NEMA 23 Dual Shaft Geared Motor

  • Part Number: 57AI56-2804D-HG50
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 1.2Nm w/o gearbox
  • Rated Current/phase: 2.8A
  • Frame Size: 57x57mm
  • Motor Length: 56mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 50:1
  • Efficiency: 92%
  • Backlash at No-load: 25arcmin
  • Gearbox Length: 62mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 34mm
  • Keyway Length: 25mm
  • Stepper Drive: DM542

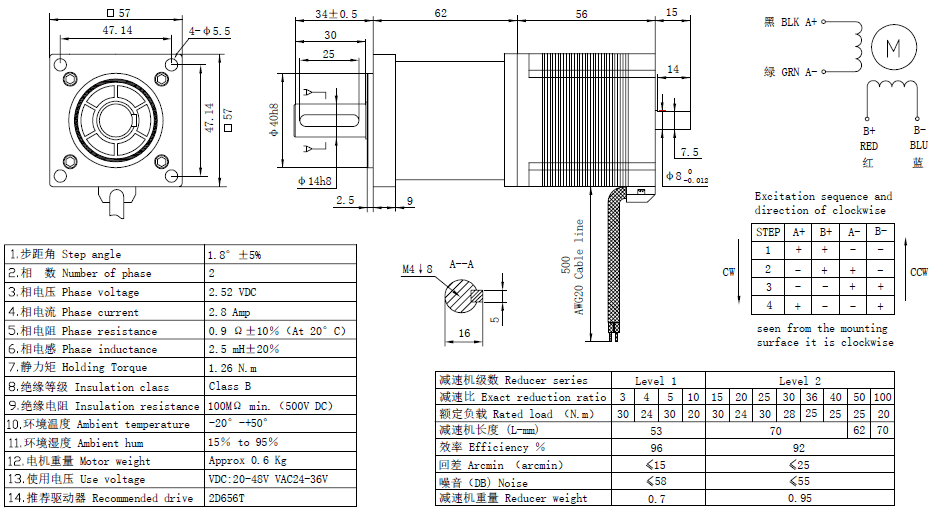

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
