nema-8-short-geared-stepper-motor-ratio-90-planetary-gearbox

NEMA 8 Geared Stepper Motor L=28mm Reduction Ratio 90:1 Planetary Gearbox

$50.00

In Stock:

10

Model: 20AI28-0504A-PG90

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 8 Short Geared Motor: This micro NEMA 8 short geared motor has a frame size 20-28mm with rated current 0.5a, integrated with a PG series planetary gearbox of gear ratio 90.25:1. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 8 Short Geared Motor Specification

  • Part Number: 20AI28-0504A-PG90
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.02Nm w/o gearbox
  • Rated Current/phase: 0.5A
  • Frame Size: 20x20mm
  • Motor Length: 28mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Gearbox Type: Planetary
  • Gear Ratio: 90.25:1
  • Efficiency: 70%
  • Backlash at No-load: 2.0deg
  • Gearbox Length: 31.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 15mm
  • D-cut Length: 9mm
  • Steppe Drive: FLKH2D0228DC

Overall Size

NEMA 8 Short Geared Motor

Reviews

There are no reviews yet.

Be the first to review “NEMA 8 Geared Stepper Motor L=28mm Reduction Ratio 90:1 Planetary Gearbox”

Your email address will not be published. Required fields are marked *

Tag: 0.04nm, 20-28mm, 20-38mm, dual shaft, nema 8 geared motor, pg19, pg5, pg64, pg90, short reducer

Related Products

  • nema-8-short-geared-stepper-motor-ratio-5-planetary-gearbox

    NEMA 8 Geared Stepper Motor L=28mm Reduction Ratio 5:1 Planetary Gearbox

    $45.00

  • Size 42mm NEMA 17 L=34mm Economy Planetary Gearbox Stepper Motor

    Size 42mm NEMA 17 L=34mm Economy Planetary Gearbox Stepper Motor

    $28.00

  • NEMA 34 Spur Gearbox Reduction Stepper Motor Gear Ratio 20-1

    NEMA 34 Spur Eccentric Gearbox Reduction Stepper Motor Gear Ratio 20:1

    $95.00

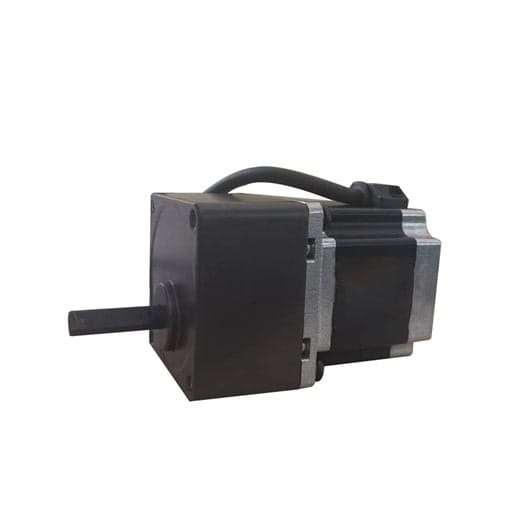

  • NEMA 23 Spur Gearbox Reduction Stepper Motor Gear Ratio 10-1
